Diesel – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Diesel – circuit diagram
DieselDiesel – circuit diagram

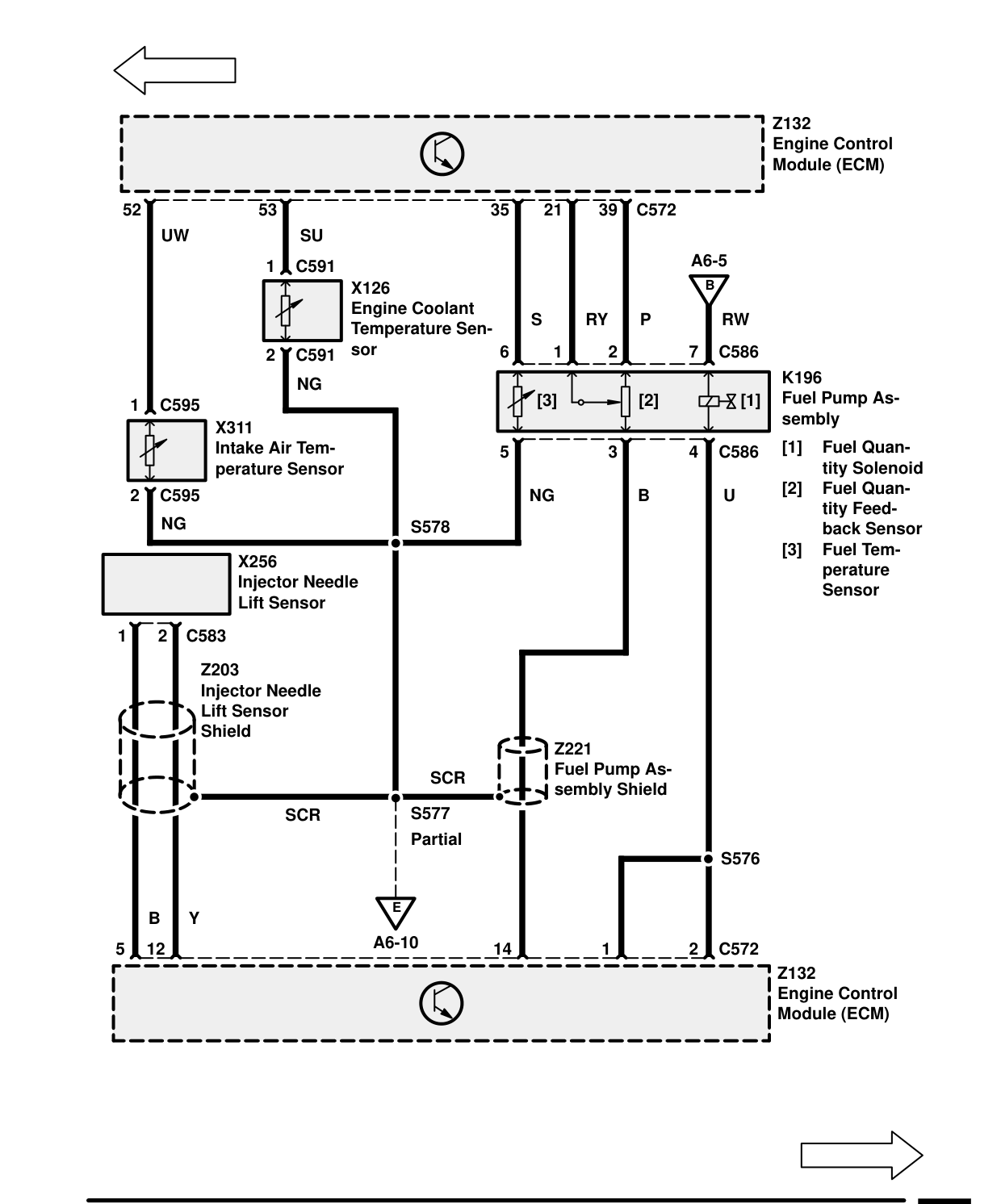

DIESEL – CIRCUIT DIAGRAM
Components on this page
- K196 Fuel Pump Assembly
- X126 Engine Coolant Temperature Sensor
- X256 Injector Needle Lift Sensor
- X311 Intake Air Temperature Sensor
- Z132 Engine Control Module (ECM)
- Z203 Injector Needle Lift Sensor Shield
- Z221 Fuel Pump Assembly Shield
