Diesel – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Diesel – circuit diagram
DieselDiesel – circuit diagram

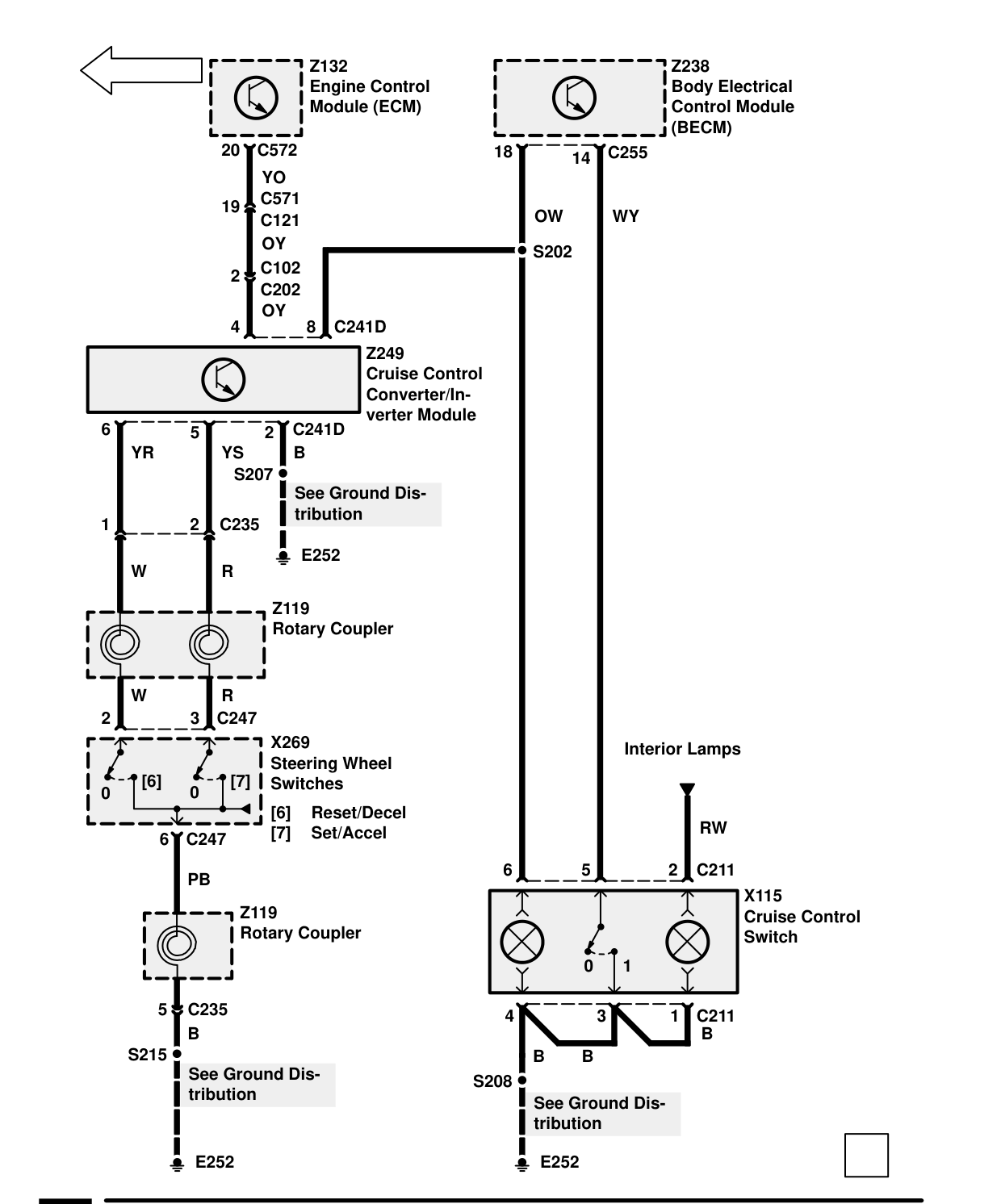

DIESEL – CIRCUIT DIAGRAM
Components on this page
- X115 Cruise Control Switch
- X269 Steering Wheel Switches
- Z119 Rotary Coupler
- Z132 Engine Control Module (ECM)
- Z238 Body Electrical Control Module (BECM) 18
- Z249 Cruise Control Converter/Inverter Module
