Cruise control – fault diagnosis
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Fault diagnosis › Cruise control – fault diagnosis
Cruise controlCruise control – fault diagnosis

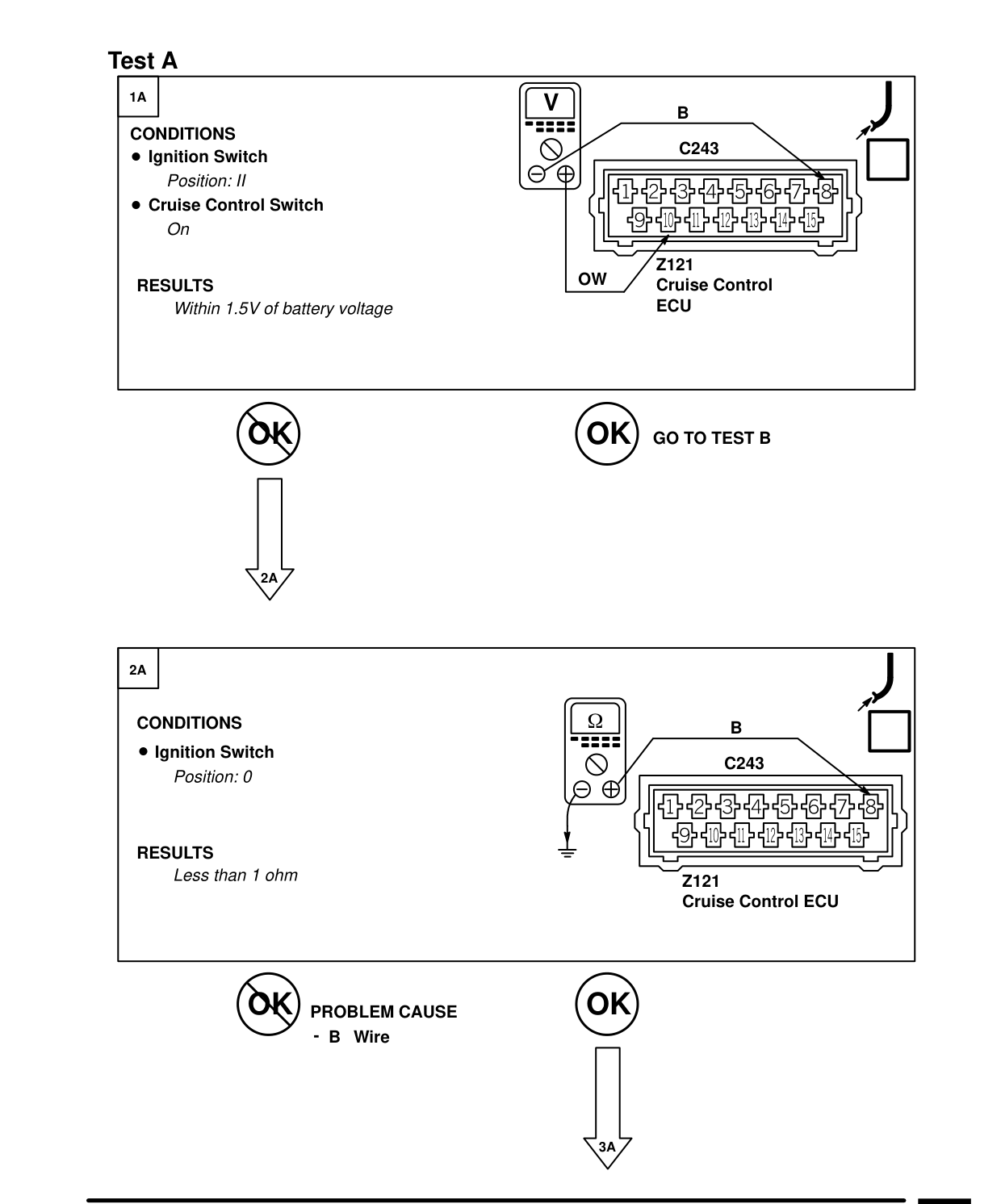

CRUISE CONTROL – FAULT DIAGNOSIS
Test A 1A
CONDITIONS Ignition Switch
Position: II
Cruise Control Switch
On
RESULTS
Within 1.5V of battery voltage
OK
2A
2A
CONDITIONS Ignition Switch
Position: 0
RESULTS
Less than 1 ohm
OK PROBLEM CAUSE - B Wire
V B
C243
Z121 OW Cruise Control ECU
OK GO TO TEST B
B
C243
Z121 Cruise Control ECU
OK
3A
