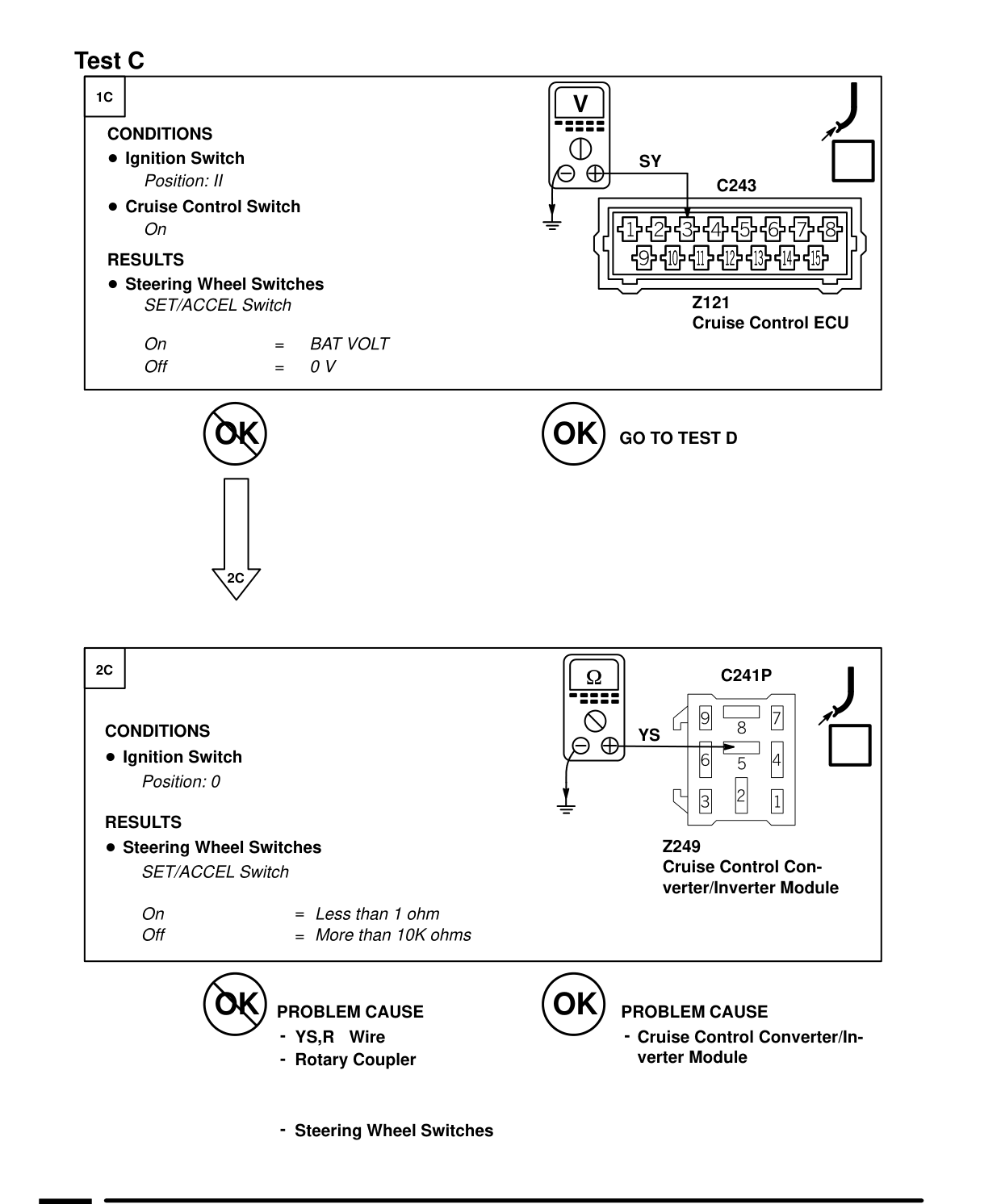

CRUISE CONTROL – FAULT DIAGNOSIS
Test C 1C
CONDITIONS Ignition Switch
Position: II
Cruise Control Switch
On
RESULTS Steering Wheel Switches
SET/ACCEL Switch
On = BAT VOLT 0 V Off =
OK
2C
2C
CONDITIONS Ignition Switch
Position: 0
RESULTS Steering Wheel Switches
SET/ACCEL Switch
= On Less than 1 ohm Off More than 10K ohms =
OK PROBLEM CAUSE - YS,R Wire - Rotary Coupler
- Steering Wheel Switches
V
SY C243
Z121 Cruise Control ECU
OK GO TO TEST D
C241P
YS
Z249 Cruise Control Con- verter/Inverter Module
OK PROBLEM CAUSE - Cruise Control Converter/In- verter Module
