Land Rover Range Rover P38 Electrical Troubleshooting Manual (1999 on)26 · Fog guard lamps
26 · General

Fog guard lamps – circuit diagram

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1999 on
Section
Circuit diagram › Fog guard lamps – circuit diagram
Fog guard lampsFog guard lamps – circuit diagram

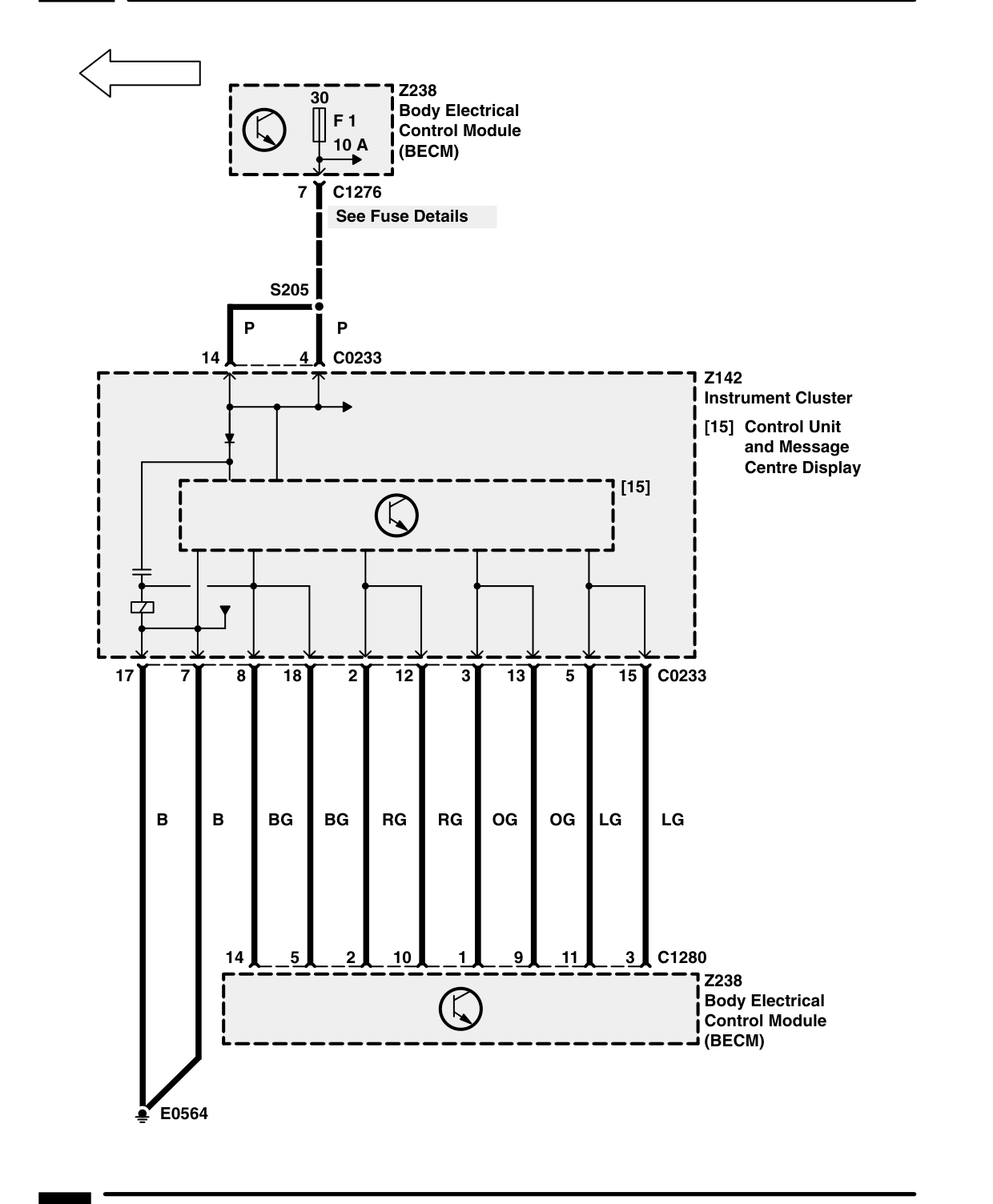

FOG GUARD LAMPS – CIRCUIT DIAGRAM

Fog Guard Lamps – Circuit Diagram

Components on this page

  • Z142 Instrument Cluster
  • Z238 Body Electrical Control Module (BECM)
