Fog guard lampsFog guard lamps – circuit diagram rev: 11/99

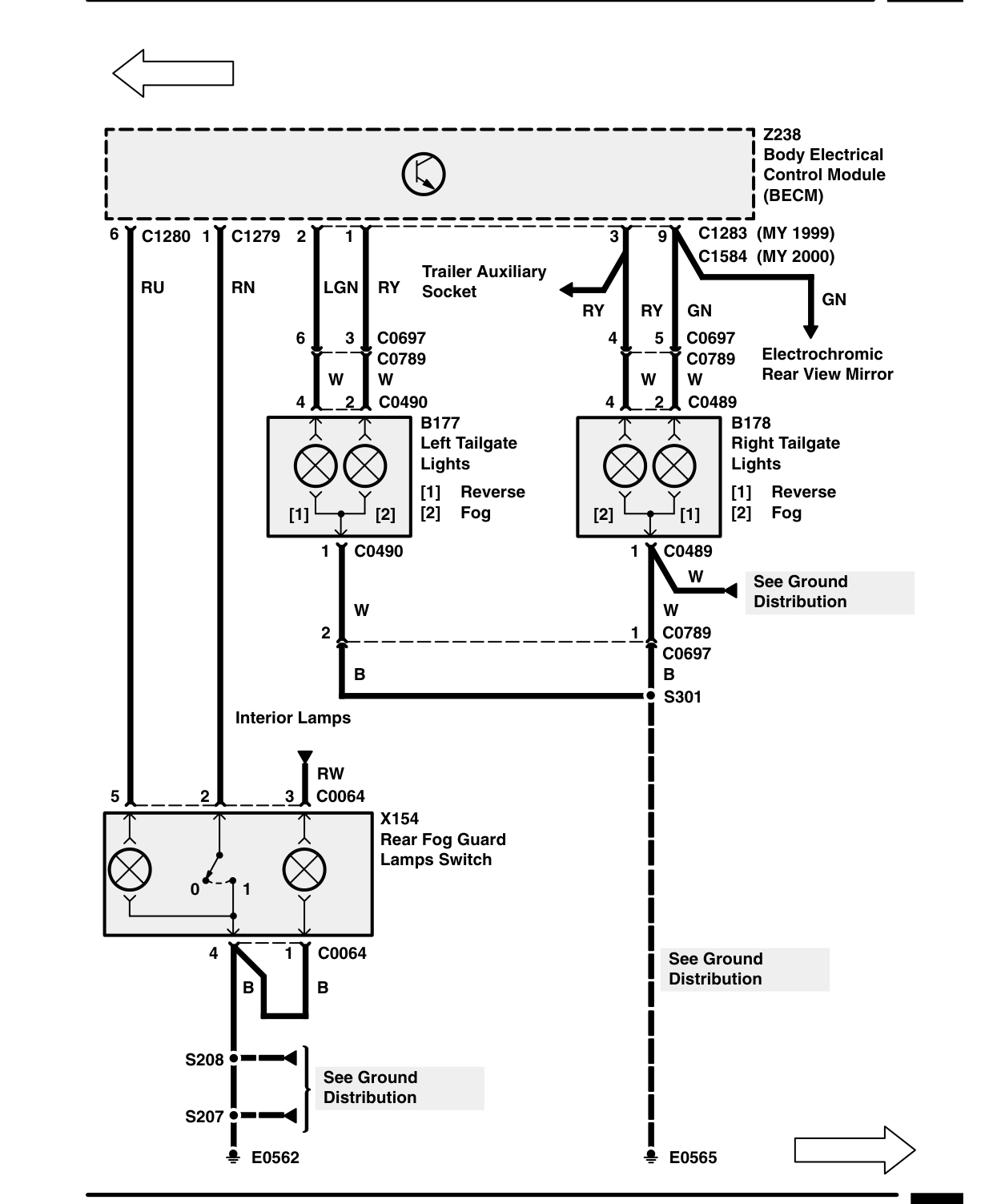

FOG GUARD LAMPS – CIRCUIT DIAGRAM REV: 11/99
Components on this page
- B177 Left Tailgate Lights
- B178 Right Tailgate Lights
- C1584 Trailer Auxiliary Socket
- Z238 Body Electrical Control Module (BECM)
