Ground distributionGround distribution – circuit diagram

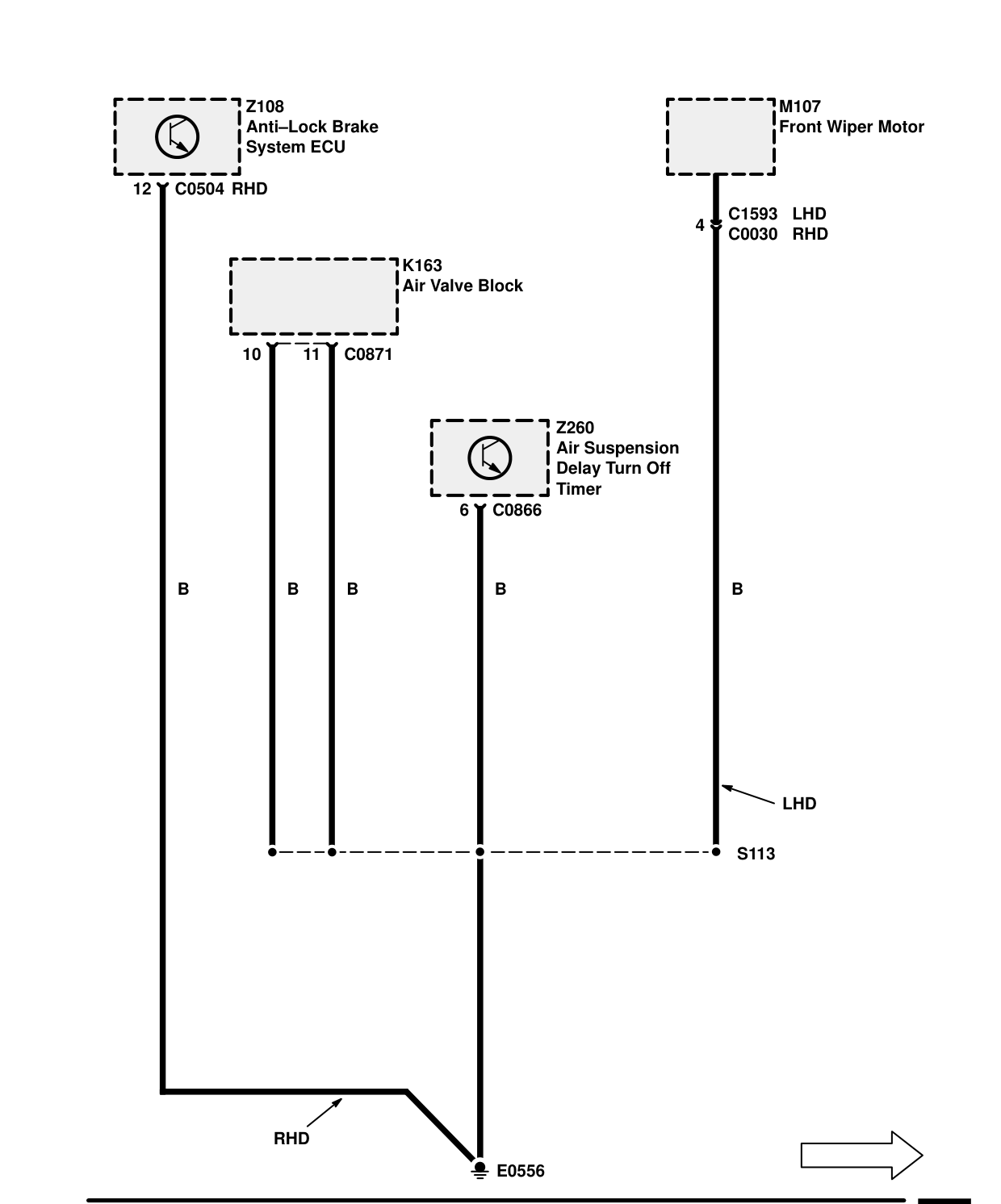

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- K163 Air Valve Block
- M107 Front Wiper Motor
- Z108 Anti-Lock Brake System ECU
- Z260 Air Suspension Delay Turn Off Timer C0866 6
