Land Rover Range Rover P38 Electrical Troubleshooting Manual (1999 on)44 · Ground distribution
44 · General

Ground distribution – circuit diagram

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1999 on
Section
Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

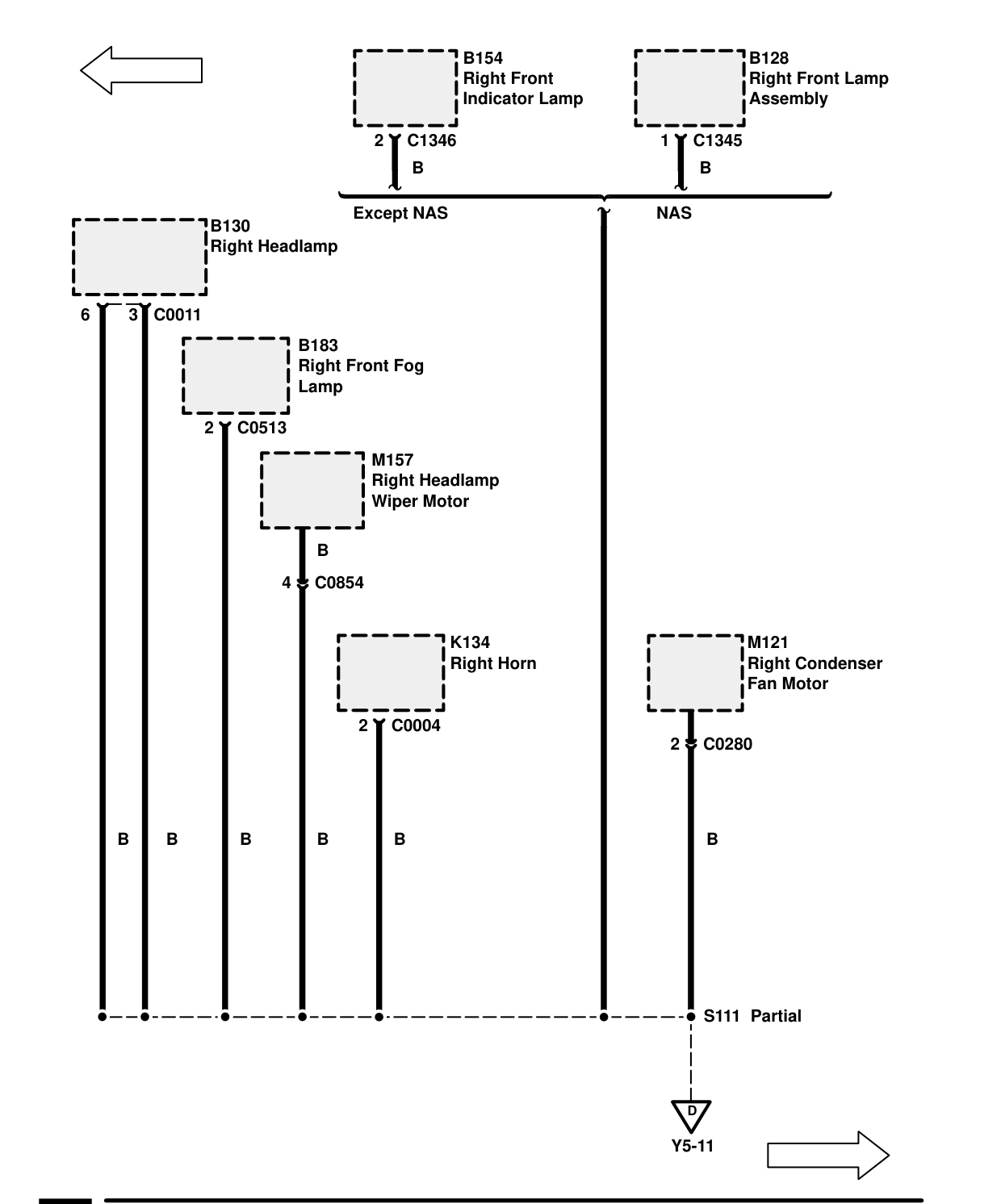

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution – Circuit Diagram

Components on this page

  • B128 Right Front Lamp Assembly
  • B130 Right Headlamp
  • B154 Right Front Indicator Lamp
  • B183 Right Front Fog Lamp
  • K134 Right Horn
  • M121 Right Condenser Fan Motor
  • M157 Right Headlamp Wiper Motor
  • S111 Partial
