Land Rover Range Rover P38 Electrical Troubleshooting Manual (1999 on)44 · Ground distribution
44 · General

Ground distribution – circuit diagram rev: 08/99

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1999 on
Section
Circuit diagram rev: 08/99 › Ground distribution – circuit diagram rev: 08/99
Ground distributionGround distribution – circuit diagram rev: 08/99

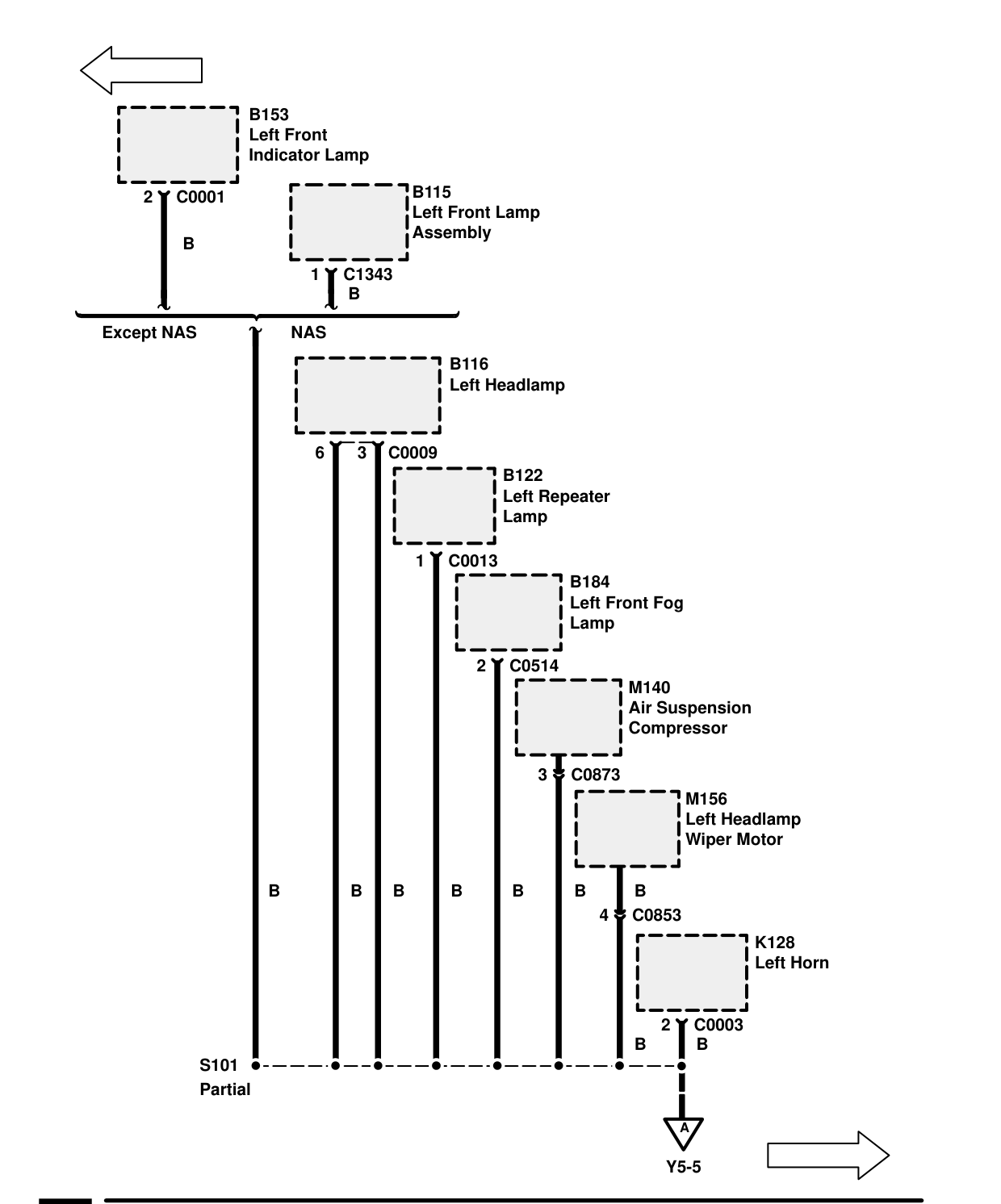

GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 08/99

Ground Distribution – Circuit Diagram Rev: 08/99

Components on this page

  • B115 Left Front Lamp Assembly
  • B116 Left Headlamp
  • B122 Left Repeater Lamp
  • B153 Left Front Indicator Lamp
  • B184 Left Front Fog Lamp
  • K128 Left Horn
  • M140 Air Suspension Compressor
  • M156 Left Headlamp Wiper Motor
