Heated front screen – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram › Heated front screen – circuit diagram
‹ Prev Heated front screen – circuit diagram rev: 08/99Next › Heated rear screen – circuit operation
Heated front screenHeated front screen – circuit diagram

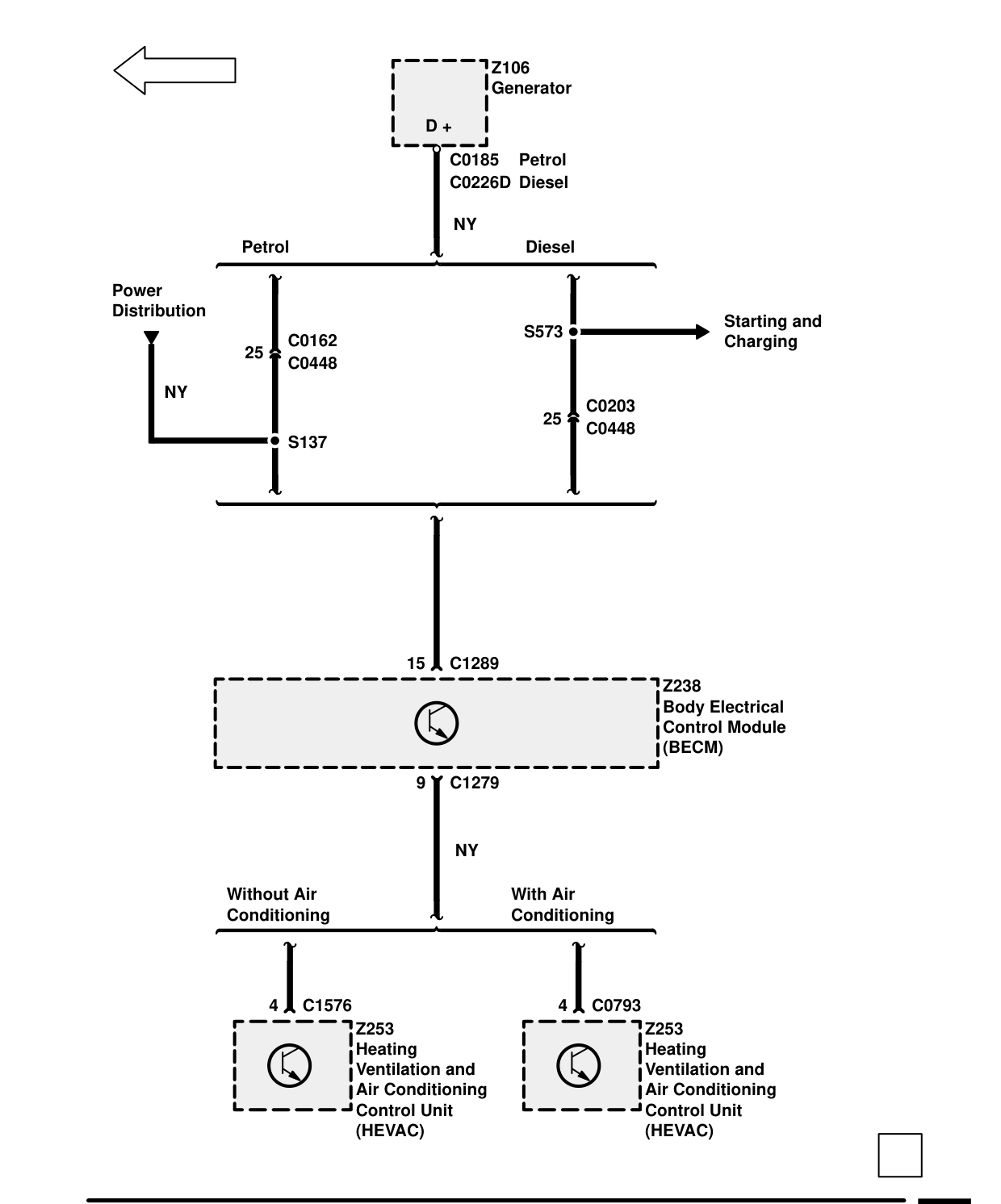

HEATED FRONT SCREEN – CIRCUIT DIAGRAM
Components on this page
- C0226D C0185 Petrol Diesel
- Z106 Generator
- Z238 Body Electrical Control Module (BECM)
- Z253 Heating Ventilation and Air Conditioning Control Unit (HEVAC)
