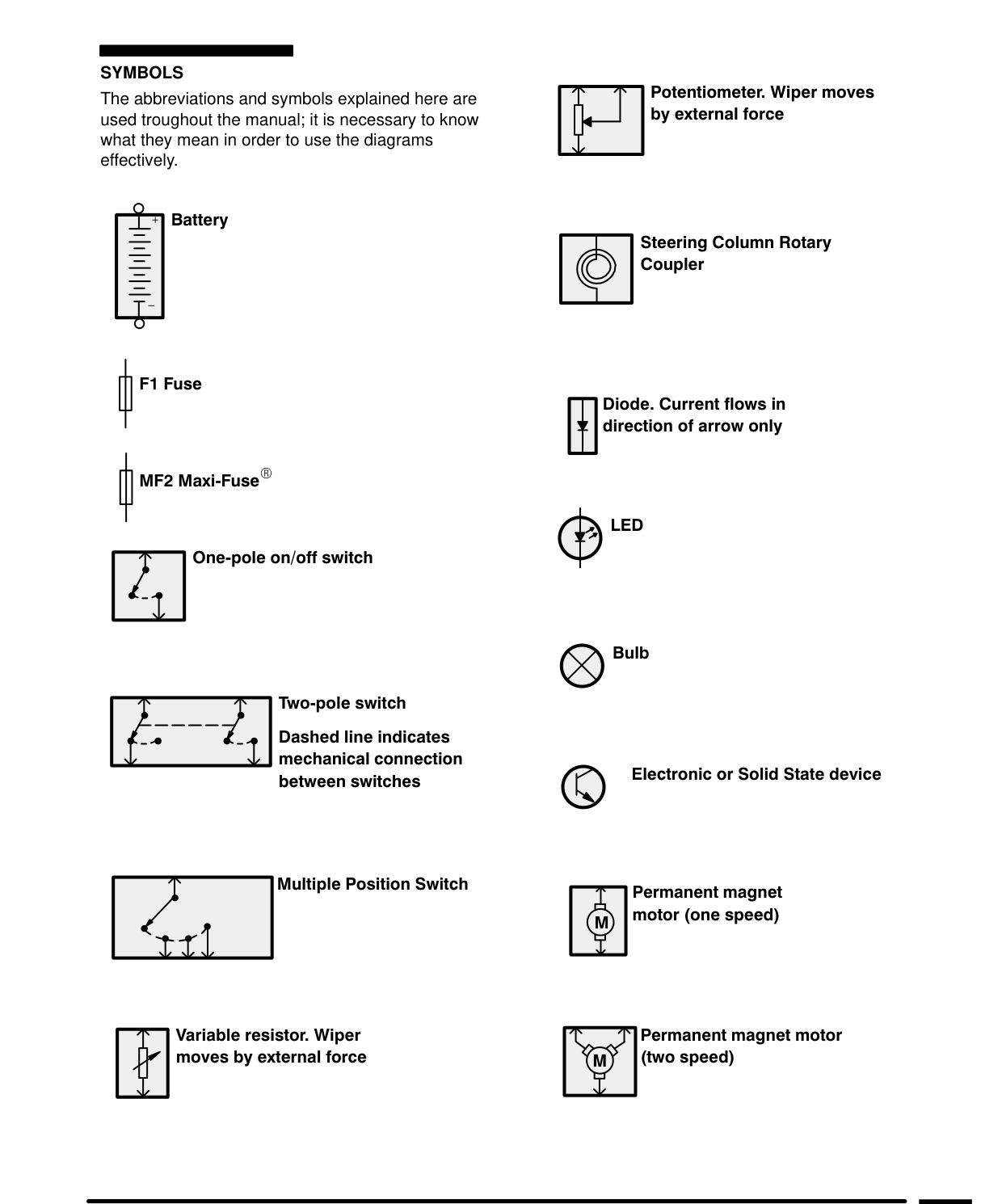

SYMBOLS The abbreviations and symbols explained here are used troughout the manual; it is necessary to know what they mean in order to use the diagrams effectively.

Battery

F1 Fuse

MF2 Maxi-Fuse ®

Z| One-pole on/off switch

Two-pole switch Dashed line indicates mechanical connection between switches

Multiple Position Switch

Variable resistor. Wiper moves by external force

Potentiometer. Wiper moves by external force

Steering Column Rotary (©) | Coupler

Diode. Current flows in

direction of arrow only

LED

X Bulb

Electronic or Solid State device

Permanent magnet motor (one speed)

LT] Permanent magnet motor (Mm) (two speed)
