Fault diagnosis › Starting and charging – fault diagnosis

Starting and chargingStarting and charging – fault diagnosis

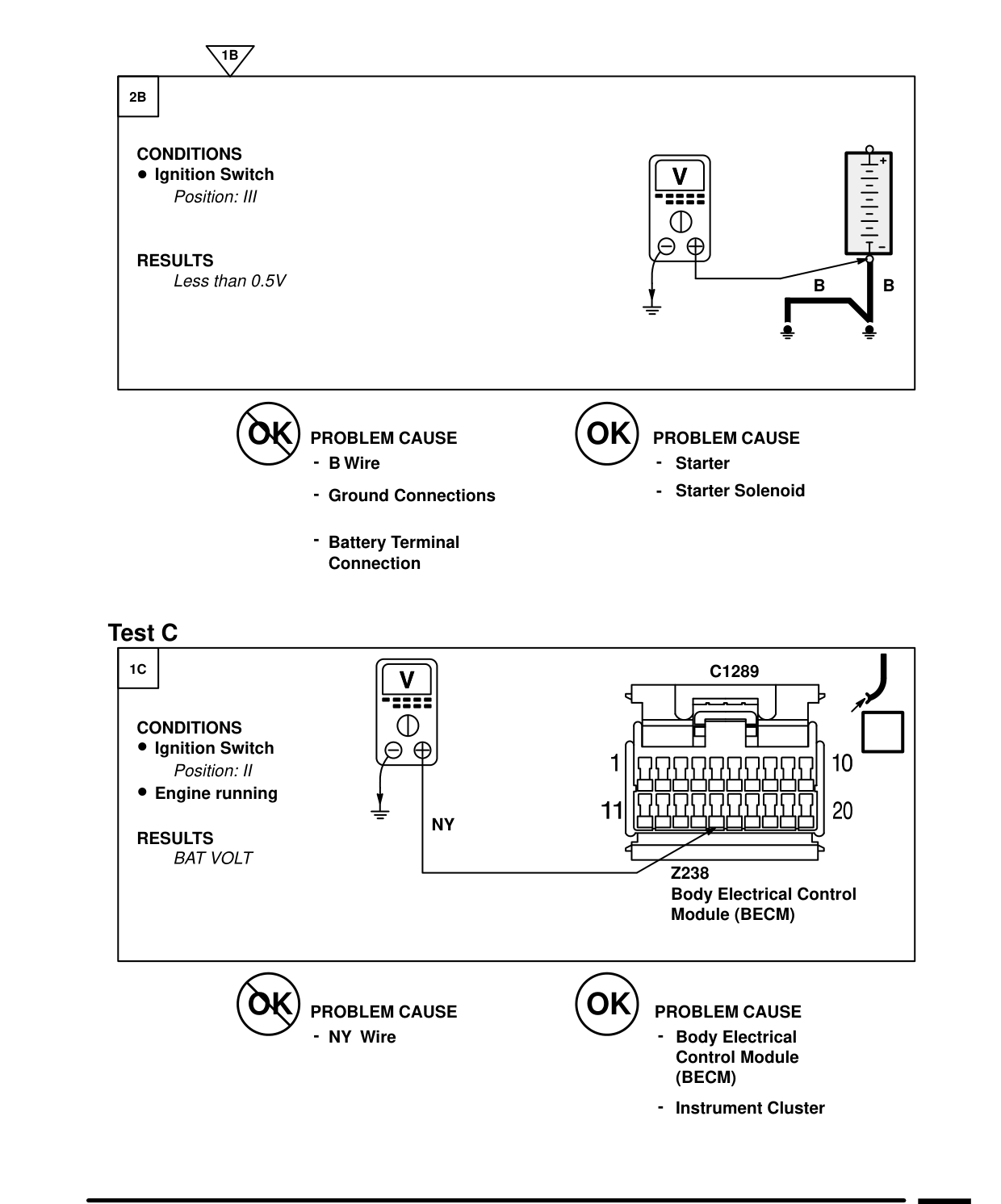

STARTING AND CHARGING – FAULT DIAGNOSIS

1B

2B

CONDITIONS Ignition Switch

Position: III

RESULTS

Less than 0.5V

OK PROBLEM CAUSE - B Wire - Ground Connections

- Battery Terminal Connection

Test C 1C

V

CONDITIONS Ignition Switch

Position: II
Engine running

NY RESULTS

BAT VOLT

OK PROBLEM CAUSE - NY Wire

V

B B

OK PROBLEM CAUSE - Starter Starter Solenoid -

C1289

Z238 Body Electrical Control Module (BECM)

OK PROBLEM CAUSE - Body Electrical Control Module (BECM) - Instrument Cluster
