STARTING AND CHARGING – FAULT DIAGNOSIS

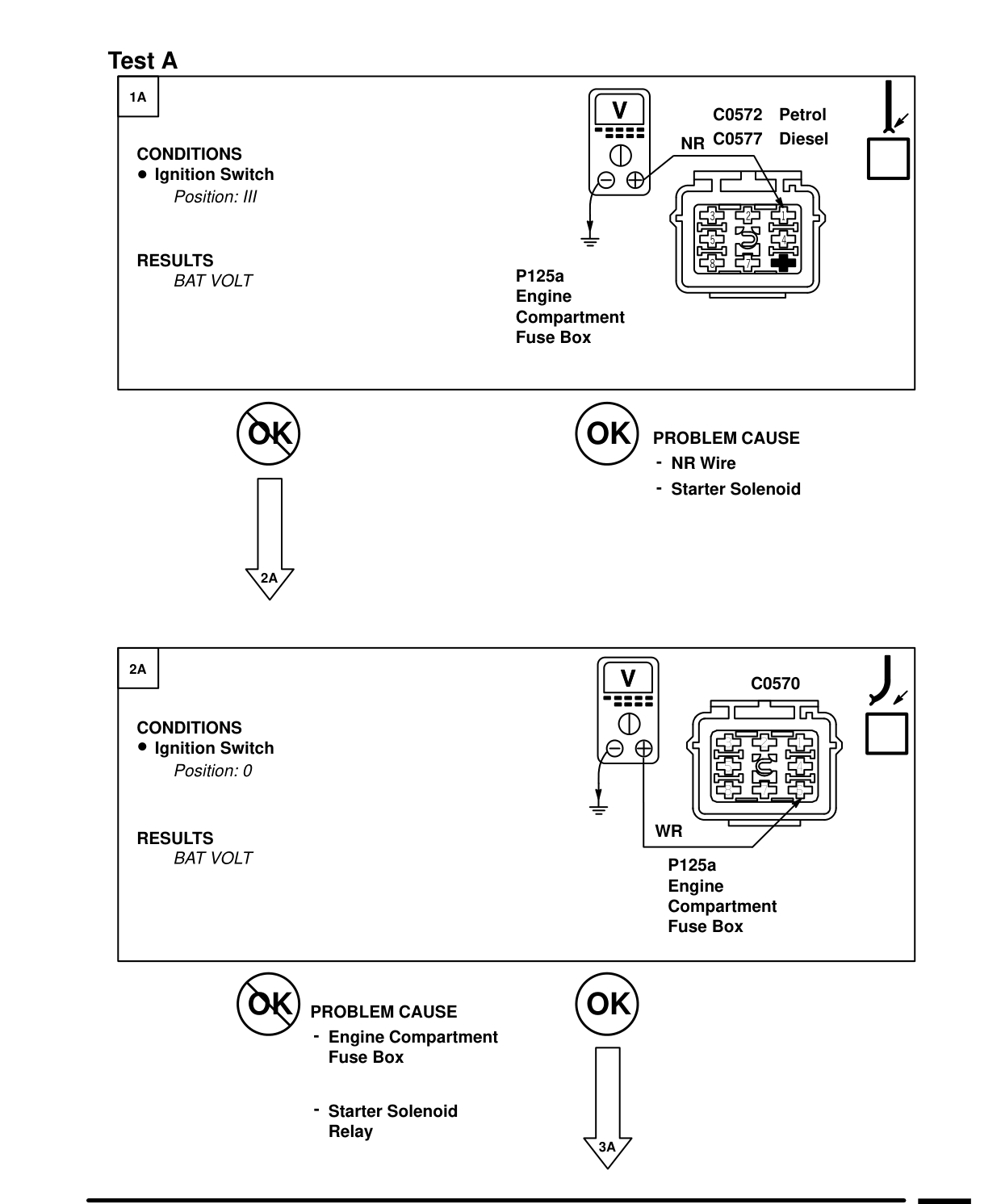

Test A 1A

CONDITIONS Ignition Switch

Position: III

RESULTS

BAT VOLT

OK

2A

2A

CONDITIONS Ignition Switch

Position: 0

RESULTS

BAT VOLT

OK PROBLEM CAUSE - Engine Compartment Fuse Box

- Starter Solenoid Relay

V

C0572 Petrol C0577 Diesel NR

P125a Engine Compartment Fuse Box

OK PROBLEM CAUSE - NR Wire - Starter Solenoid

V

C0570

WR

P125a Engine Compartment Fuse Box

OK

3A
