Warnings and indicators – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram › Warnings and indicators – circuit diagram
‹ Prev Warnings and indicators – circuit operationNext › Warnings and indicators – circuit diagram rev: 08/99
Warnings and indicatorsWarnings and indicators – circuit diagram

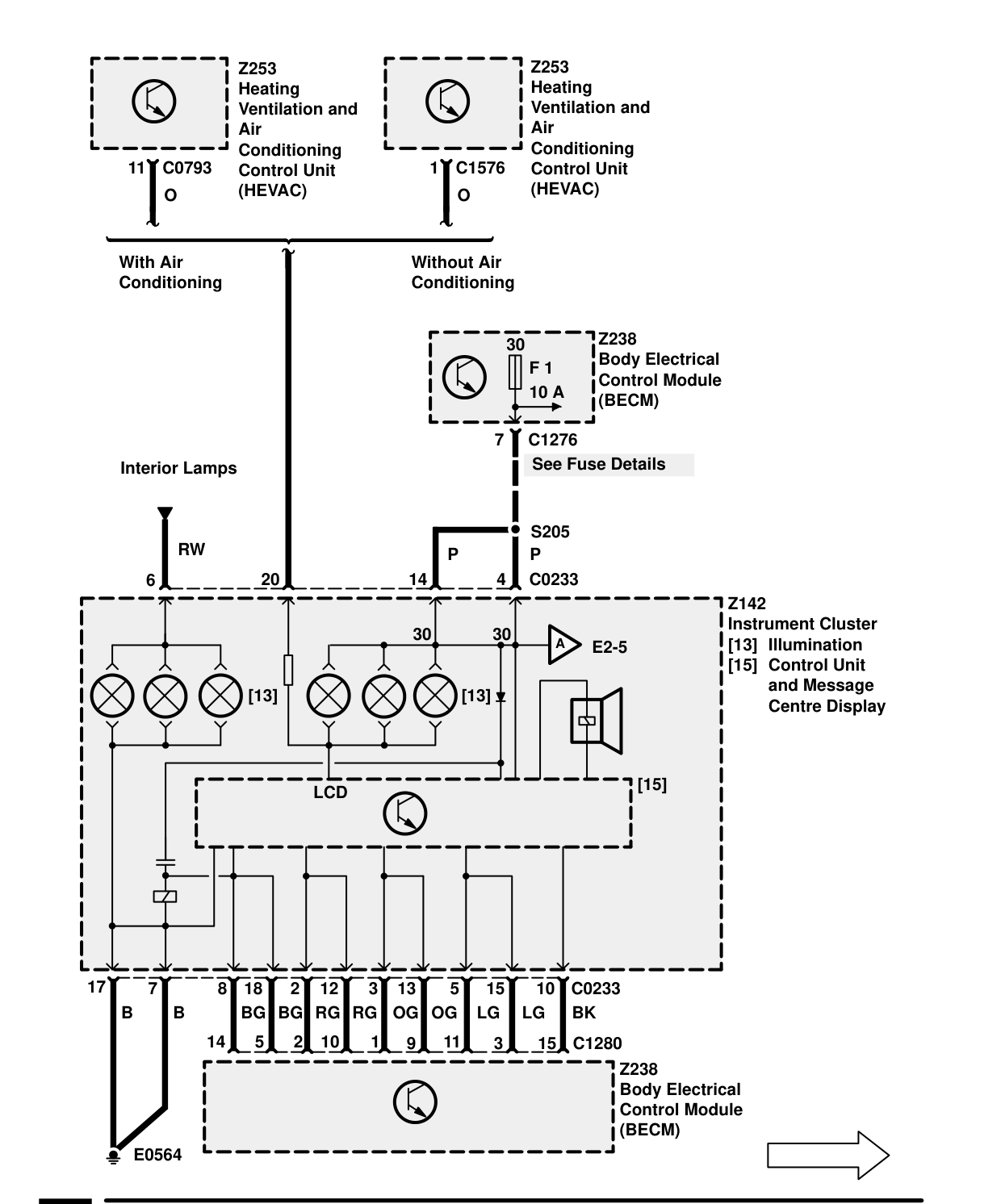

WARNINGS AND INDICATORS – CIRCUIT DIAGRAM
Components on this page
- Z238 Body Electrical Control Module (BECM)
- Z238 Body Electrical Control Module (BECM) E0564
- Z253 Heating Ventilation and Air Conditioning Control Unit (HEVAC)
