Range Rover P38
82
AIR CONDITIONING
NEW RANGE ROVER
2
REPAIR
AMBIENT TEMPERATURE SENSOR - UP TO VIN
381430
Service repair no - 82.20.91
Remove
1. Remove plenum air intake panels.
See
HEATING AND VENTILATION, Repair.

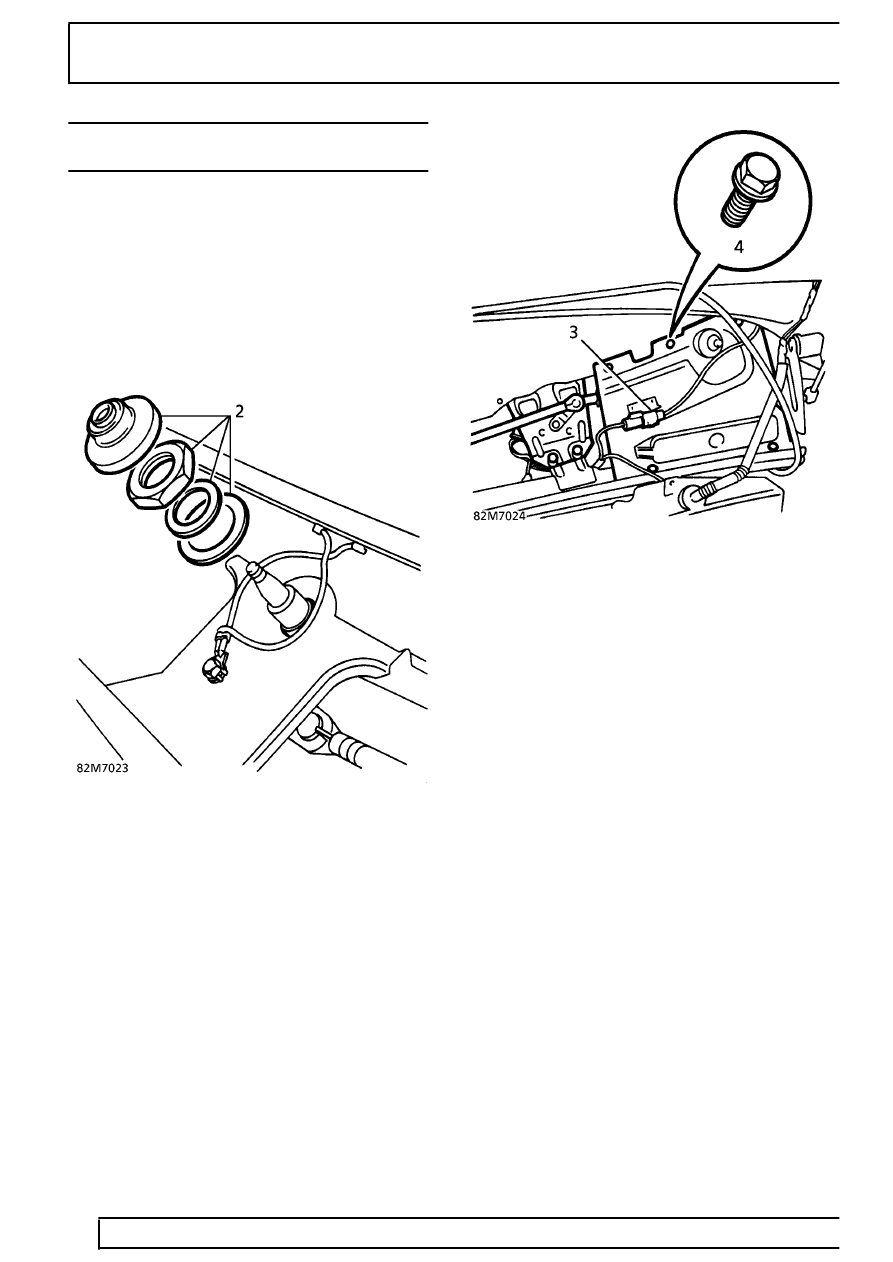

2. LHD only: Remove plastic cover, nut and
washers from LH wiper spindle.
3. Disconnect heated screen LH multiplug. Release
plug from clip.
4. Remove 6 bolts securing LH scuttle side panel.
Remove panel.
5. Remove pollen filter.
