NOTE:
Do not carry out further dismantling if
component is removed for access only.
11. Remove condenser securing bolts from
locations.

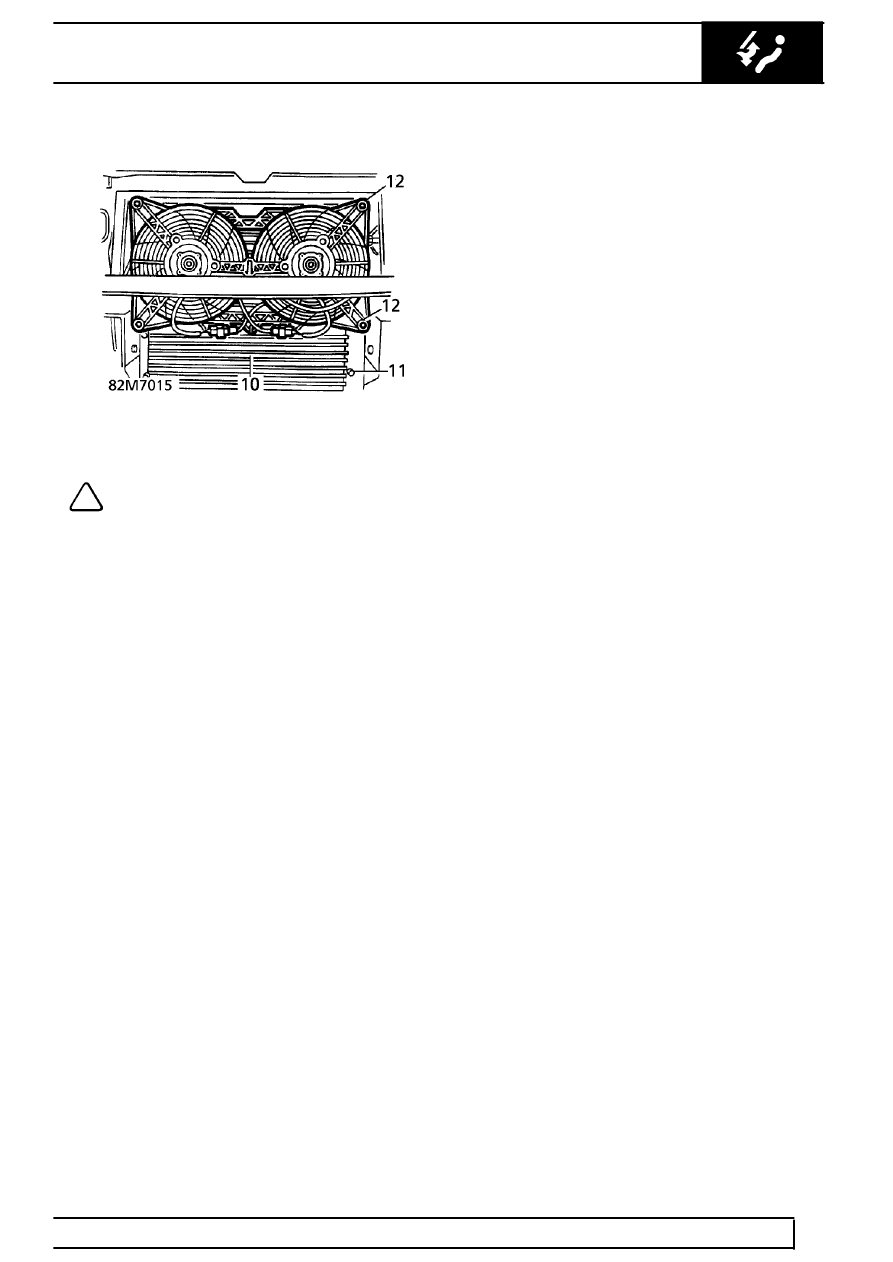

12. Remove 4 bolts securing fans to condenser.
Remove fans.
Refit
13. Position fans on condenser. Secure with bolts.
14. If removed, position condenser securing bolts in
condenser.
15. Position condenser assembly.
16. Connect multiplugs to fans.
17. Remove plugs from condenser and pipes.
18. Ensure mating faces are clean.
19. Lubricate new ’O’ rings with compressor oil. Fit
to pipes.
20. Connect pipes to condenser.
21. Align pipe clips to condenser fan studs. Secure
with nuts.
22. Secure condenser to radiator bracket with bolts.
23. Position deflector panel. Secure with studs.
24. Fit intercooler.
See FUEL SYSTEM, Repair.
25. Evacuate and recharge air conditioning system.
See Adjustment.
26. Reconnect battery negative lead.
