ELECTRICAL
45
REPAIR

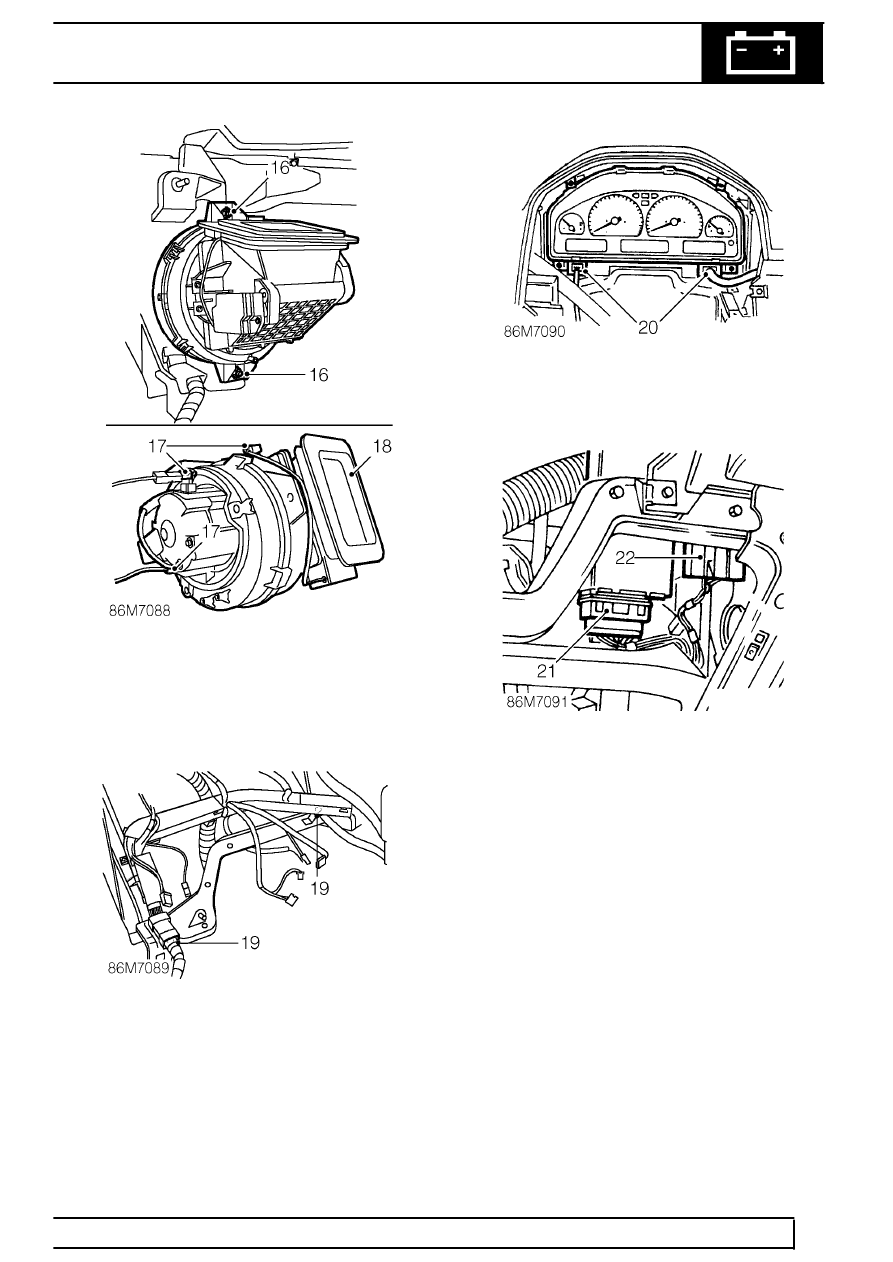

16. Remove 2 nuts securing driver side heater
blower to fascia.
17. Position blower and disconnect 2 multiplugs and
1 Lucar from unit.
18. Remove blower unit.
19. Release 2 clips securing harness duct to lower
RH fascia.
20. Disconnect 2 multiplugs from instrument pack.
21. Disconnect multiplug from cruise control ECU.
22. Release cruise control relay from fascia bracket
and remove relay.
