Drive Belt|Service and Repair|Page 1597 > < Engine - Valve Timing Procedure|Page 1593

ES 350 V6-3.5L (2GR-FE) (2007)

  • Maintenance
  • Drive Belt
  • Component Information
  • Service and Repair

Page 1
background image

Drive Belt: Service and Repair

DRIVE BELT

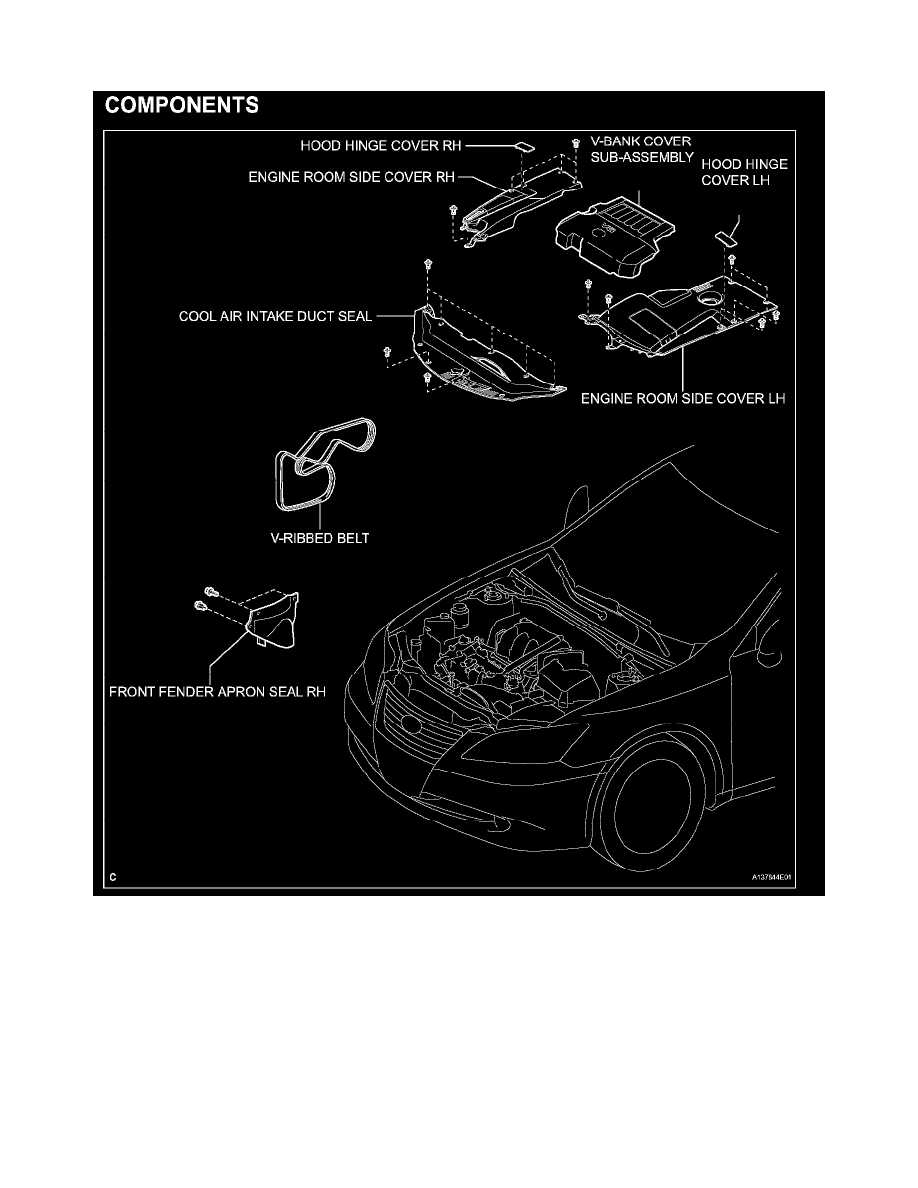

COMPONENTS

REMOVAL

1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER APRON SEAL RH
3. REMOVE COOL AIR INTAKE DUCT SEAL
4. REMOVE ENGINE ROOM SIDE COVER LH
5. REMOVE ENGINE ROOM SIDE COVER RH
6. REMOVE V-BANK COVER SUB-ASSEMBLY

  • Maintenance
  • Drive Belt
  • Component Information
  • Service and Repair

Drive Belt|Service and Repair|Page 1597 > < Engine - Valve Timing Procedure|Page 1593
