Fuse: Locations
- Make
- Lexus
- Model
- GX 470
- Engine
- V8-4.7L (2UZ-FE)
- Year
- 2004
- Section
- Fuse › Locations
Power and Ground DistributionLocations · page 1 of 2
Fuse: Locations – diagram from the Power and Ground Distribution chapter of the Lexus GX 470 V8-4.7L (2UZ-FE) (2004) factory manual.
/Page-1046001.png)
Fuse: Locations

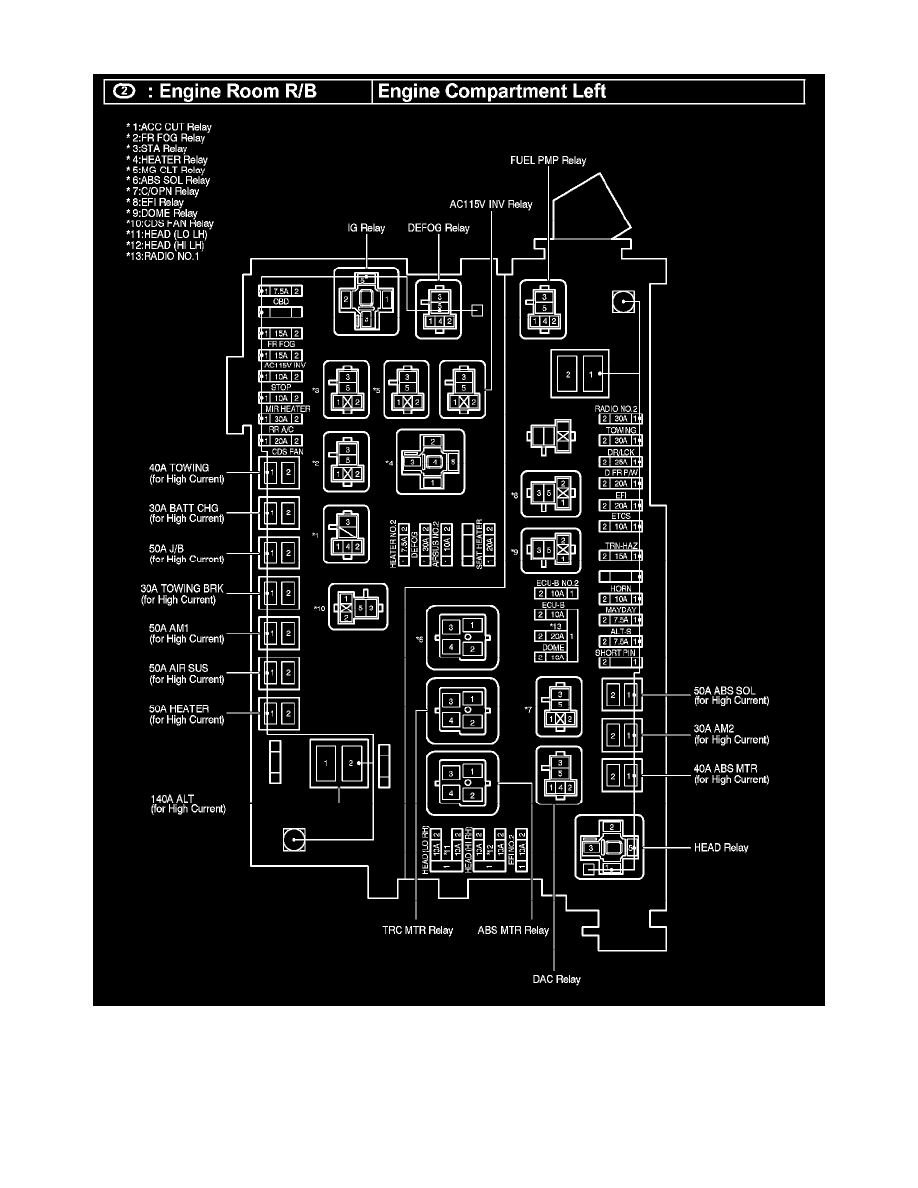

Engine Room R/B - Engine Compartment Left
