Alignment: Specifications
Service Data

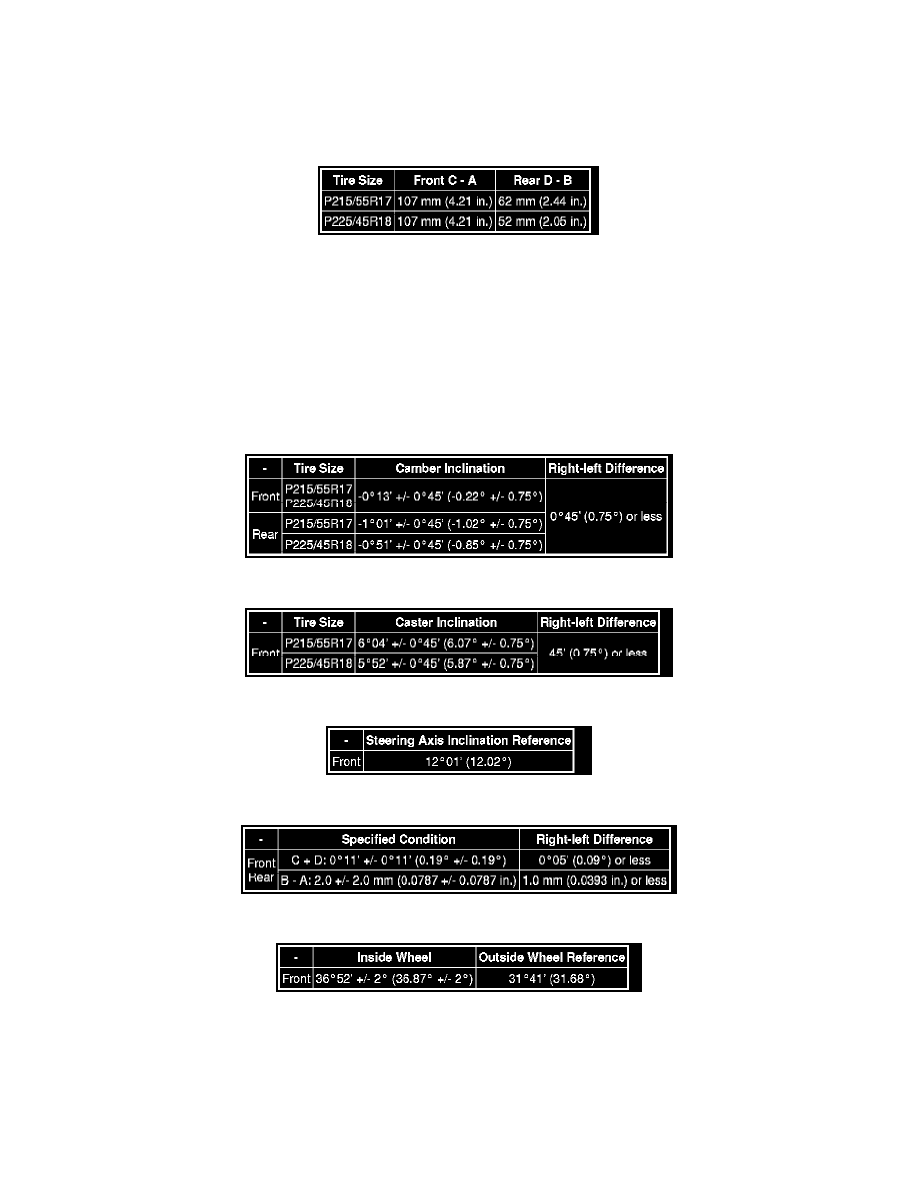

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

Vehicle Height (Unloaded Vehicle)

Measurement points:

*

A: Ground clearance of front No. 1 lower suspension arm bushing set bolt center

*

B: Ground clearance of rear No. 2 suspension arm set bolt center

*

C: Ground clearance of front wheel center

*

D: Ground clearance of rear wheel center

Camber (Unloaded Vehicle)

Caster (Unloaded Vehicle)

Steering Axis Inclination (Unloaded Vehicle)

Toe-in (Unloaded Vehicle)

Wheel Turning Angle (Unloaded Vehicle)
