Fuse: Locations

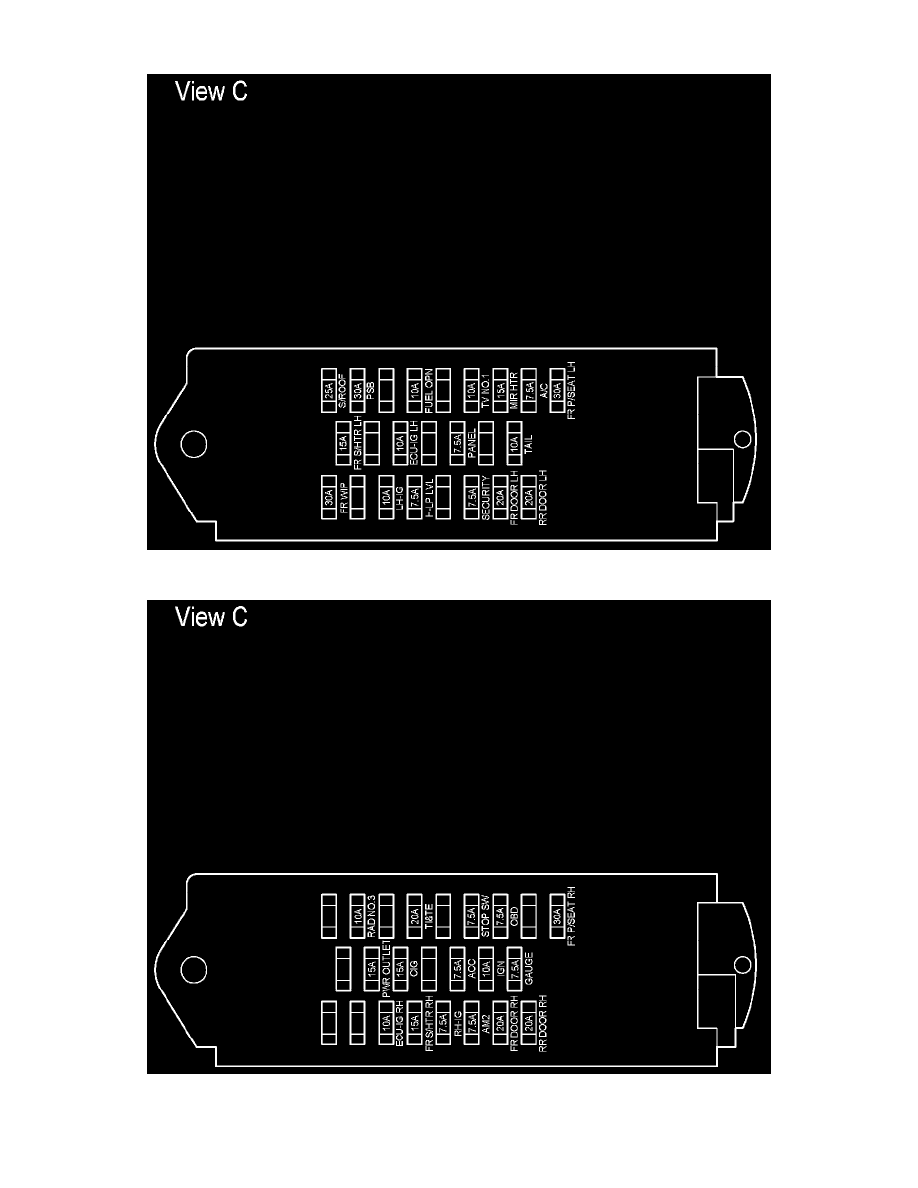

Cowl Side J/B LH - Left Instrument Panel Reinforcement

Cowl Side J/B RH - Right Instrument Panel Reinforcement
