LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-973003.png)

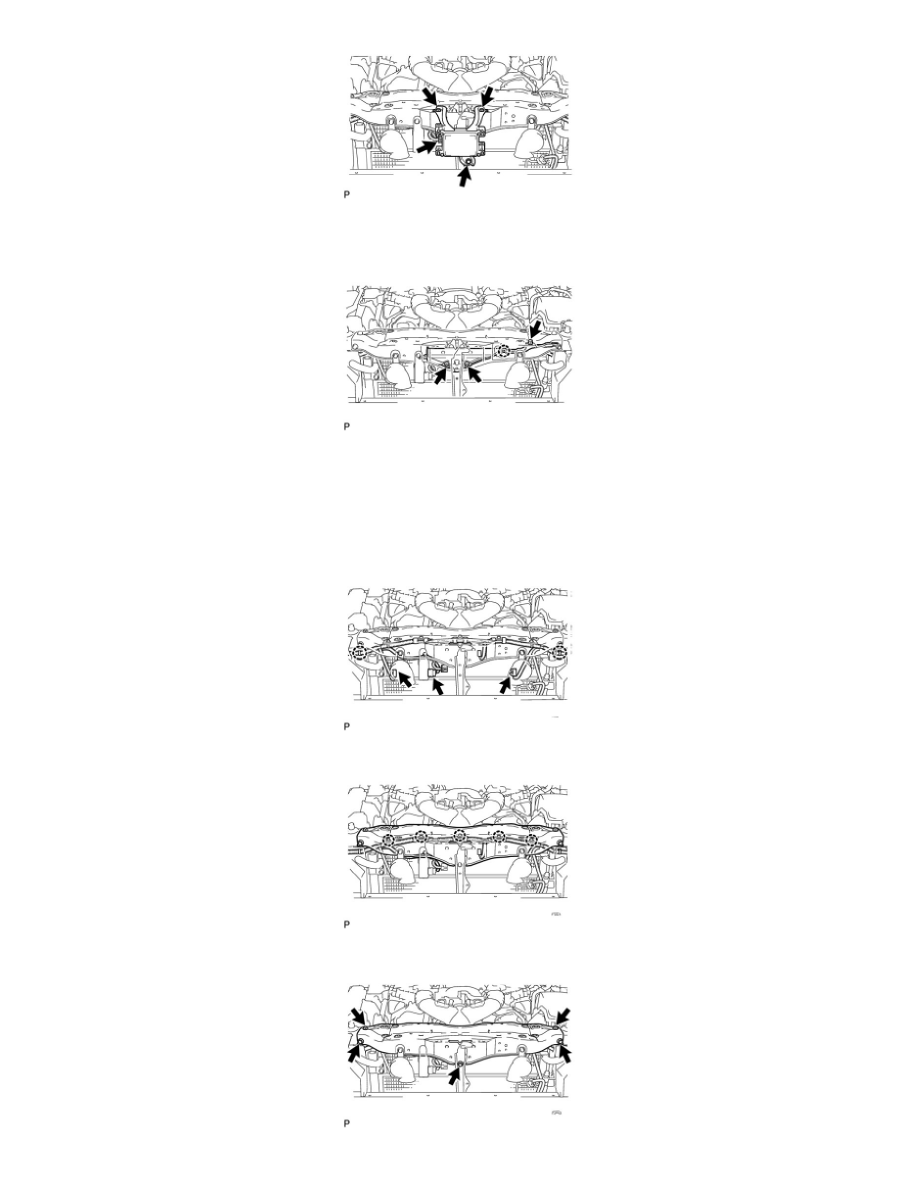

(a) Disconnect the connector.
(b) Remove the 3 bolts and sensor.
27. REMOVE HOOD LOCK CONTROL CABLE COVER
(a) Remove the 3 screws.
(b) Detach the claw and remove the cover.
28. REMOVE HOOD LOCK ASSEMBLY See: Body and Frame/Doors, Hood and Trunk/Hood/Hood Latch Release Cable/Service and
Repair/Removal
29. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
(a) Disconnect the 3 connectors and detach the 2 clamps.
(b) Detach the 5 clamps and disconnect the wire harness.
