LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)

Page 6
background image

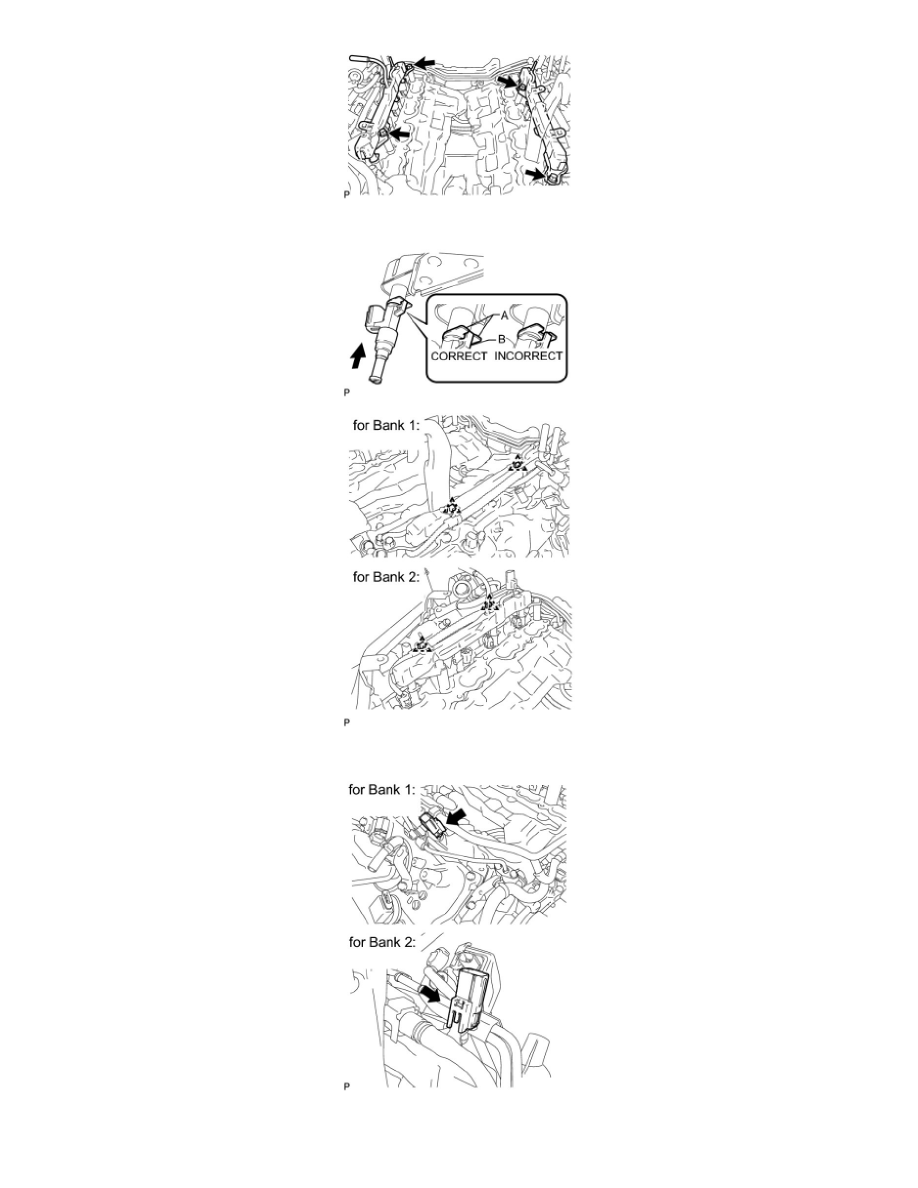

NOTE: Check that the part of the injector labeled B is between the parts of the delivery pipe labeled A.

(d) Connect the 4 wire harness clamps.

(e) Connect the 2 delivery pipe connectors.
