LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-1736005.png)

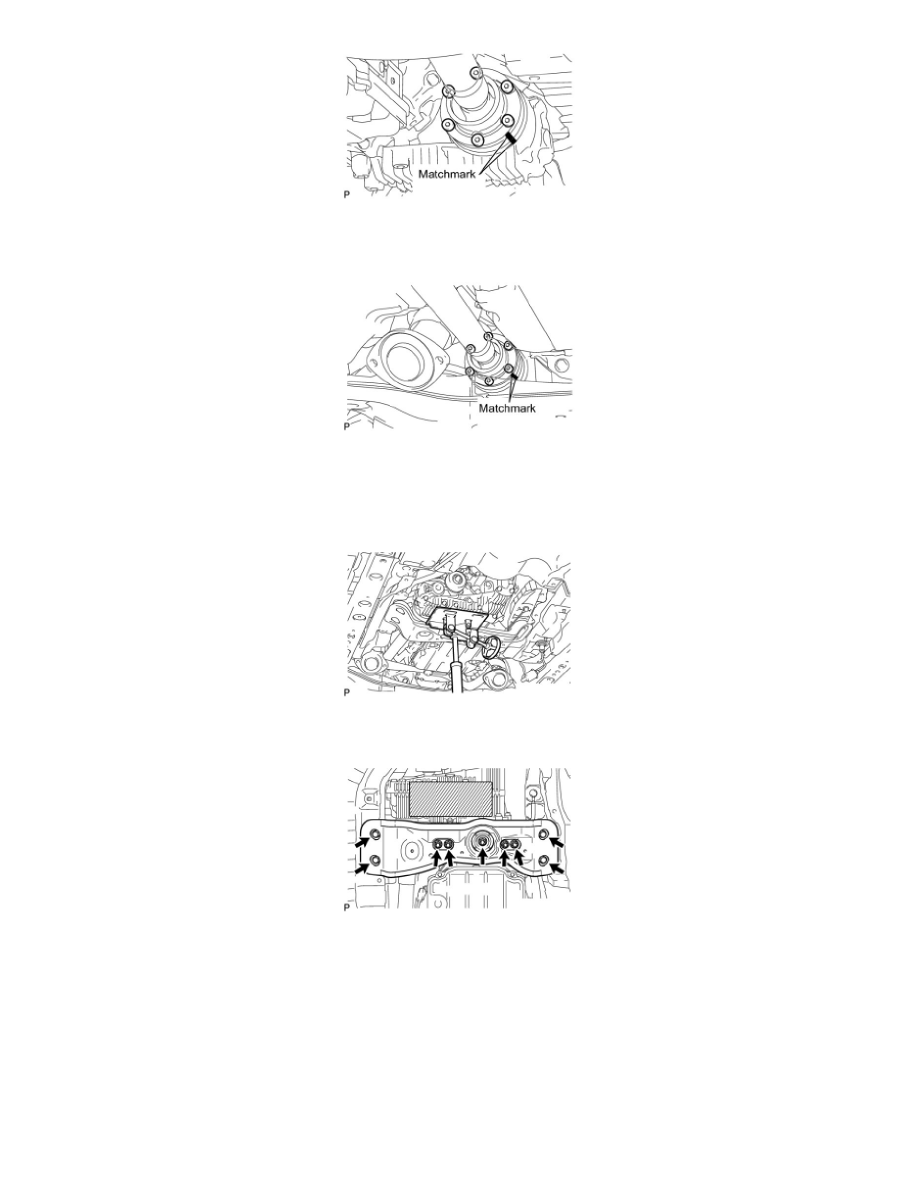

(a) Put matchmarks on the transfer companion flange and front propeller shaft.
(b) Using a 6 mm socket hexagon wrench, loosen the 6 bolts.
NOTE: Be careful not to damage the front propeller shaft.
(c) Put matchmarks on the front differential companion flange and front propeller shaft.
(d) Using a 6 mm socket hexagon wrench, loosen the 6 bolts.
NOTE: Be careful not to damage the front propeller shaft.
4. REMOVE REAR ENGINE MOUNTING MEMBER
(a) Support the hybrid vehicle transmission assembly with a transmission jack.
NOTE: Keep the transmission jack level with the weight properly supported.
(b) Remove the 4 bolts.
(c) Remove the 5 nuts and rear No. 3 engine mounting insulator, and remove the rear engine mounting member from the hybrid vehicle
transmission assembly.
5. REMOVE FRONT PROPELLER SHAFT ASSEMBLY
(a) Remove the 12 bolts, 4 universal joint washers and front propeller shaft assembly.
NOTE: Do not bend the front propeller shaft at an excessive angle.
Installation
PROPELLER SHAFT: FRONT PROPELLER SHAFT ASSEMBLY: INSTALLATION
INSTALLATION
