RX 350 AWD V6-3.5L (2GR-FE) (2007)
/Page-926003.png)

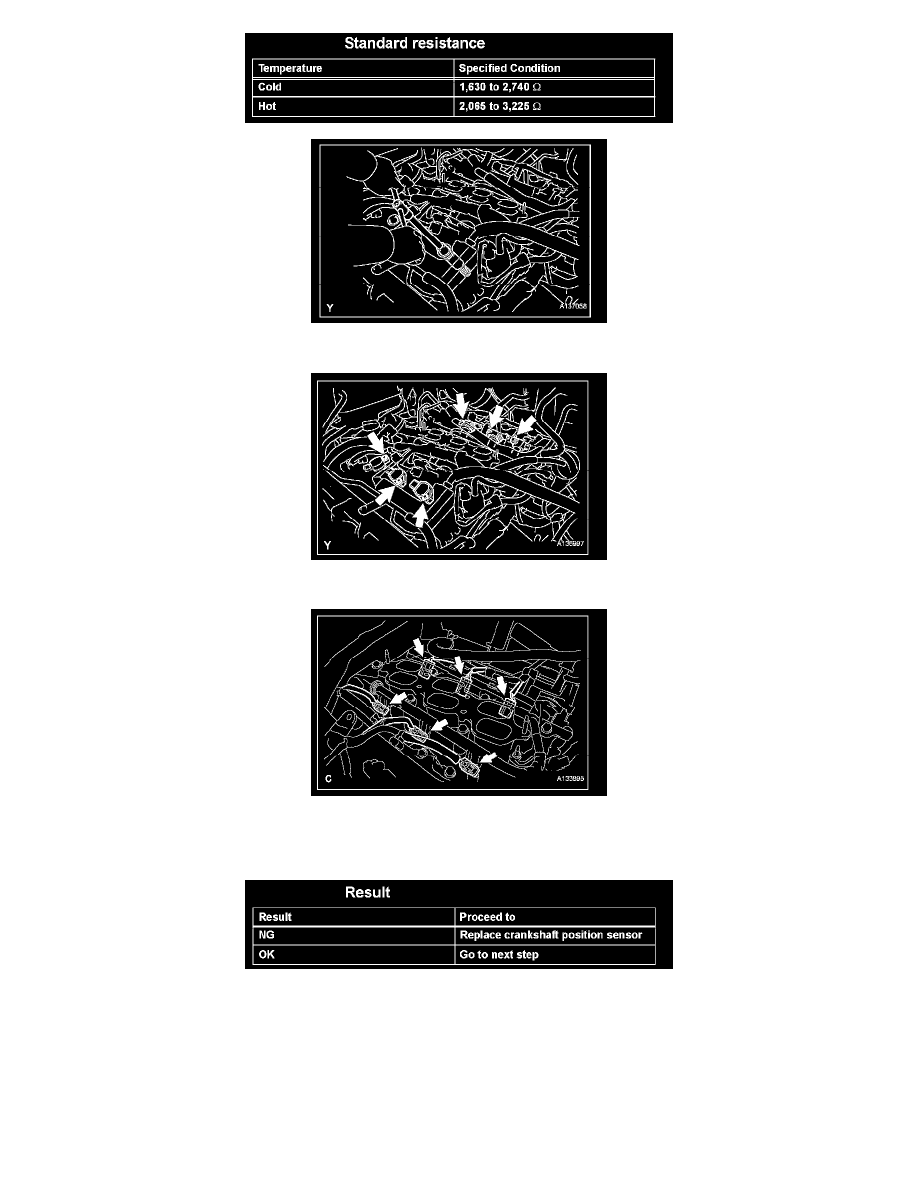

5. Measure the resistance of the crankshaft position sensor.
6. Check the IGT signal from the ECM.
d. Using a 16 mm (0.63 in.) plug wrench, install the spark plugs.
Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
e. Install the 6 ignition coils with the 6 bolts and connect the 6 ignition coil connectors.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
