6 L4-2.5L (2010)
Rear Door Hinge: Service and Repair
REAR DOOR HINGE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Rear door See: Service and Repair/Rear Door Removal/Installation
b. Front scuff plate See: Interior Moulding / Trim/Scuff Plate/Service and Repair/Front Scuff Plate Removal/Installation
c. Rear scuff plate See: Interior Moulding / Trim/Scuff Plate/Service and Repair/Rear Scuff Plate Removal/Installation
d. B-pillar lower trim See: Interior Moulding / Trim/Trim Panel/Service and Repair/B-Pillar Lower Trim Removal/Installation

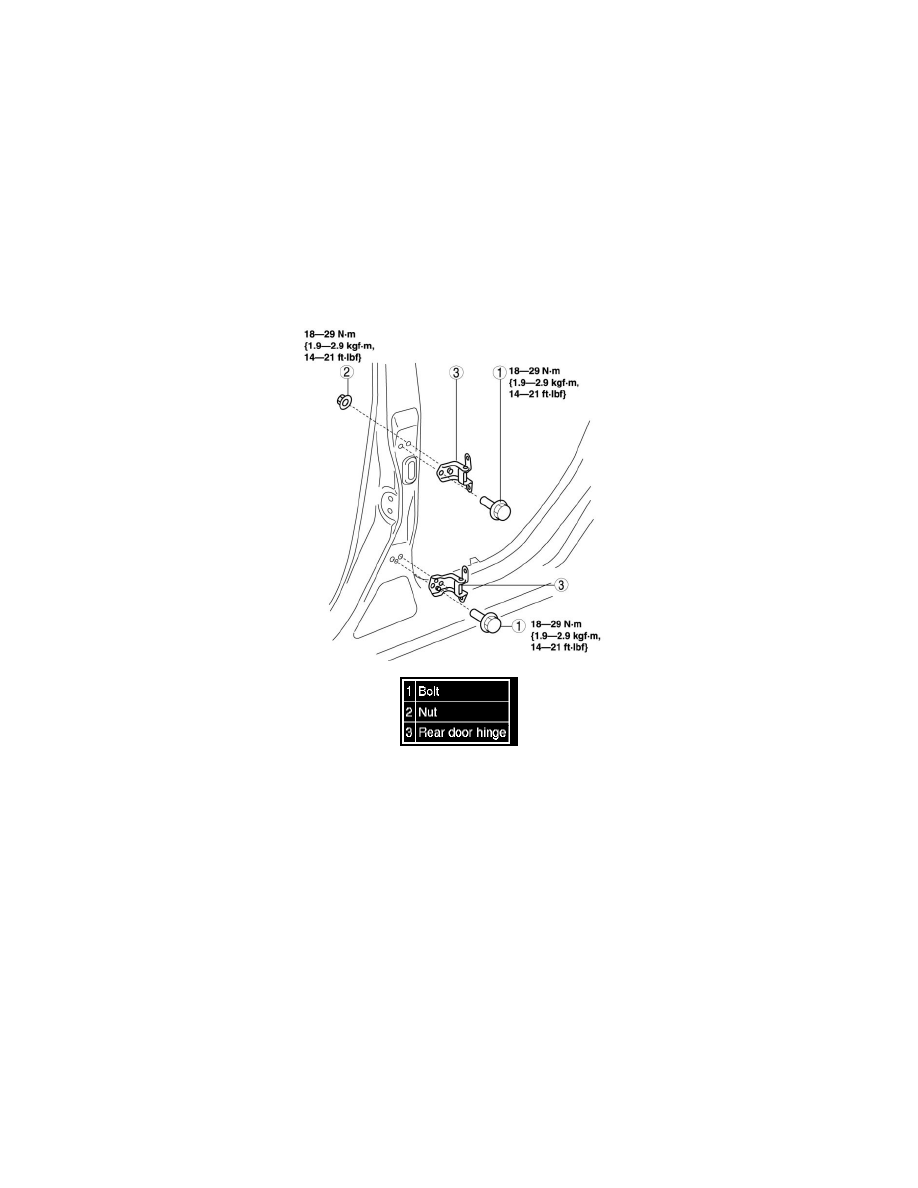

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
