6 L4-2.5L (2010)
Radiator: Service and Repair
RADIATOR REMOVAL/INSTALLATION [L5]
WARNING:
-
Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot.
Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
-
Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it
counterclockwise 2.5 turns. Step back while the pressure escapes.
-
When you are sure all the pressure is gone, turn the cap using the cloth, and remove it.
1. Disconnect the negative battery cable.
2. Remove the aerodynamic under cover No.1. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.1
Removal/Installation
3. Drain the engine coolant. See: Coolant/Service and Repair
4. Remove the air cleaner and fresh air duct component. See: Engine/Intake Manifold/Service and Repair
5. Remove the cooling fan component. See: Radiator Cooling Fan/Service and Repair
6. Disconnect the ATF oil cooler pipe and hose from the radiator. (ATX) See: Transmission and Drivetrain/Automatic
Transmission/Transaxle/Transmission Cooler/Service and Repair/Removal and Replacement/Oil Cooler Removal/Installation - FS5A-EL
7. Remove the front bumper. See: Body and Frame/Bumper/Front Bumper/Service and Repair/Removal and Replacement/Front Bumper
Removal/Installation

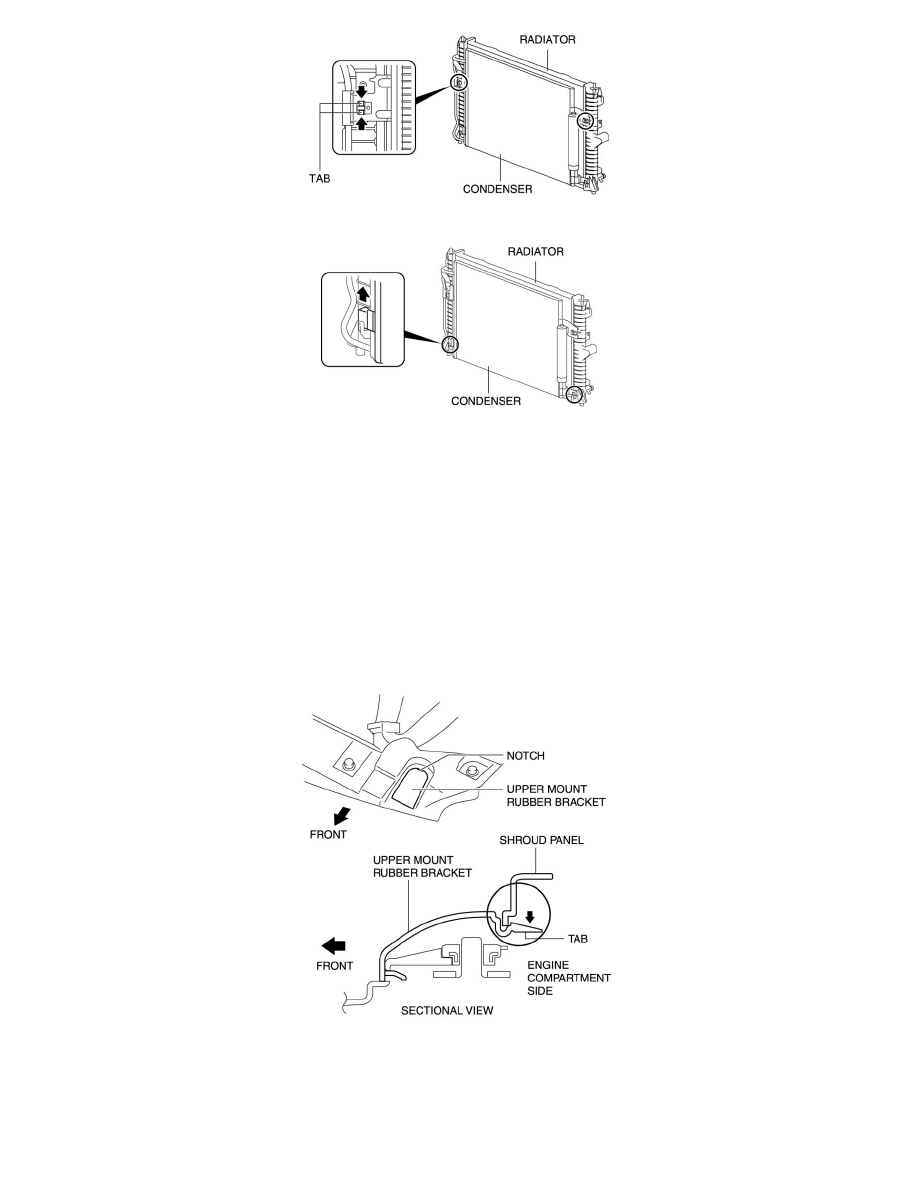

8. Remove in the order indicated in the table.
9. Install in the reverse order of removal.
10. Refill the engine coolant. See: Coolant/Service and Repair
11. Inspect for engine coolant leakage. See: Coolant/Testing and Inspection/Engine Coolant Leakage Inspection
12. Inspect the ATF level. (ATX) See: Maintenance/Fluids/Fluid - A/T/Service and Repair/Procedures/Automatic Transaxle Fluid (ATF) Inspection -
FS5A-EL
