6 L4-2.5L (2010)
Oil Pan Installation Note

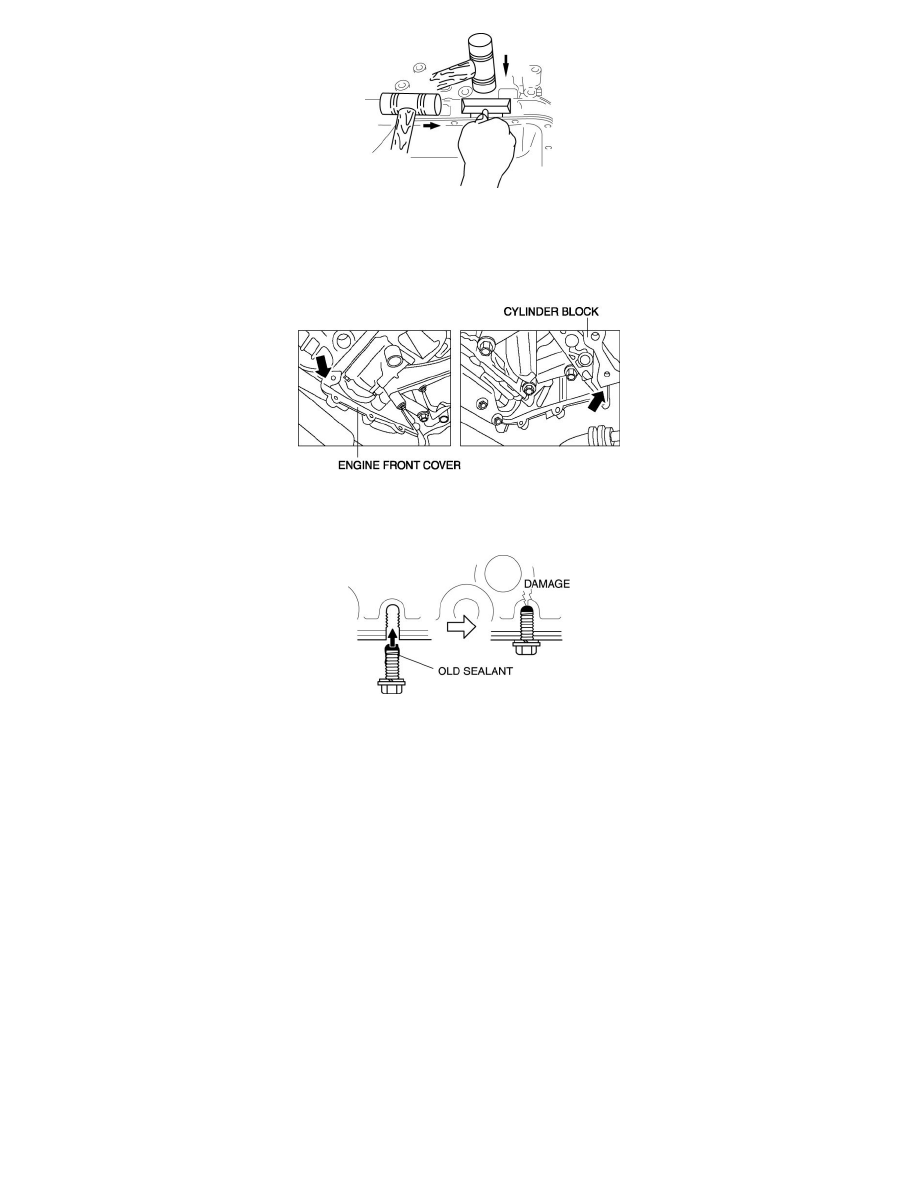

CAUTION:
1
Do not allow the gasket residue to enter the oil pan. Using cleaning fluid, completely remove the oil from the joint. Especially be sure to
completely remove oil and gasket residue from the corner of the engine front cover and the cylinder block.
2
Apply the silicon sealant in a single, unbroken line.
3
Install the oil pan before the applied silicone sealant starts to harden.
4
Using bolts with the old seal adhering could cause cracks in the cylinder block.
