6 L4-2.5L (2010)

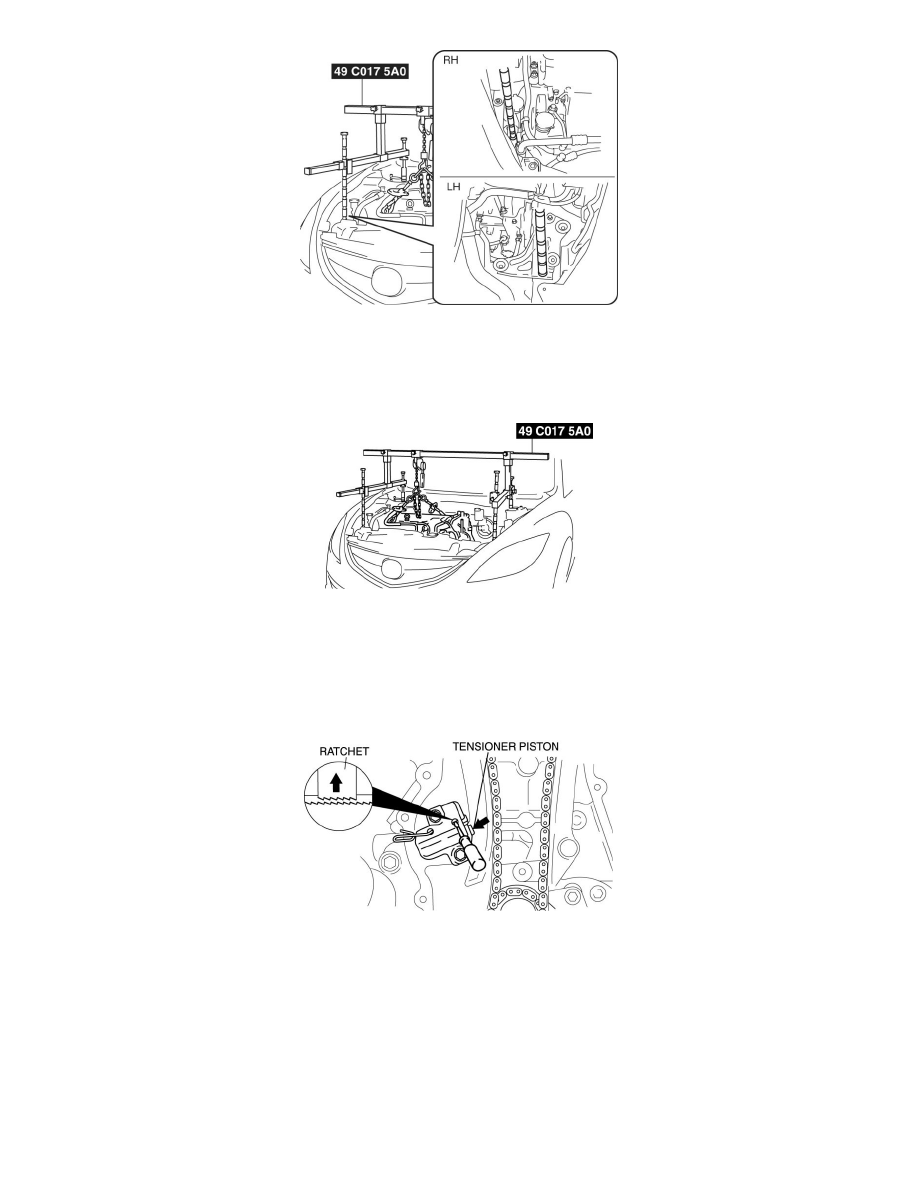

c. Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal.
d. Make sure each joint is securely tightened.
3. Support the engine using the SST.
Chain Tensioner Removal Note
1. Using a thin screwdriver, hold the chain tensioner ratchet lock mechanism away from the ratchet stem.
2. Slowly compress the tensioner piston.
3. Hold the tensioner piston using a 1.5 mm {0.059 in} wire or paper clip.
Oil Pump Sprocket Removal/Installation Note
1. Temporarily install the crankshaft pulley and crankshaft pulley lock bolt to the crankshaft, and lock the oil pump against rotation as shown in
figure.
