6 L4-2.5L (2010)
Tightening torque
-
7-13 Nm {72-132 kgf-cm, 62-115 in-lbf}
2. Install the No.3 engine mount rubber hand-tighten.

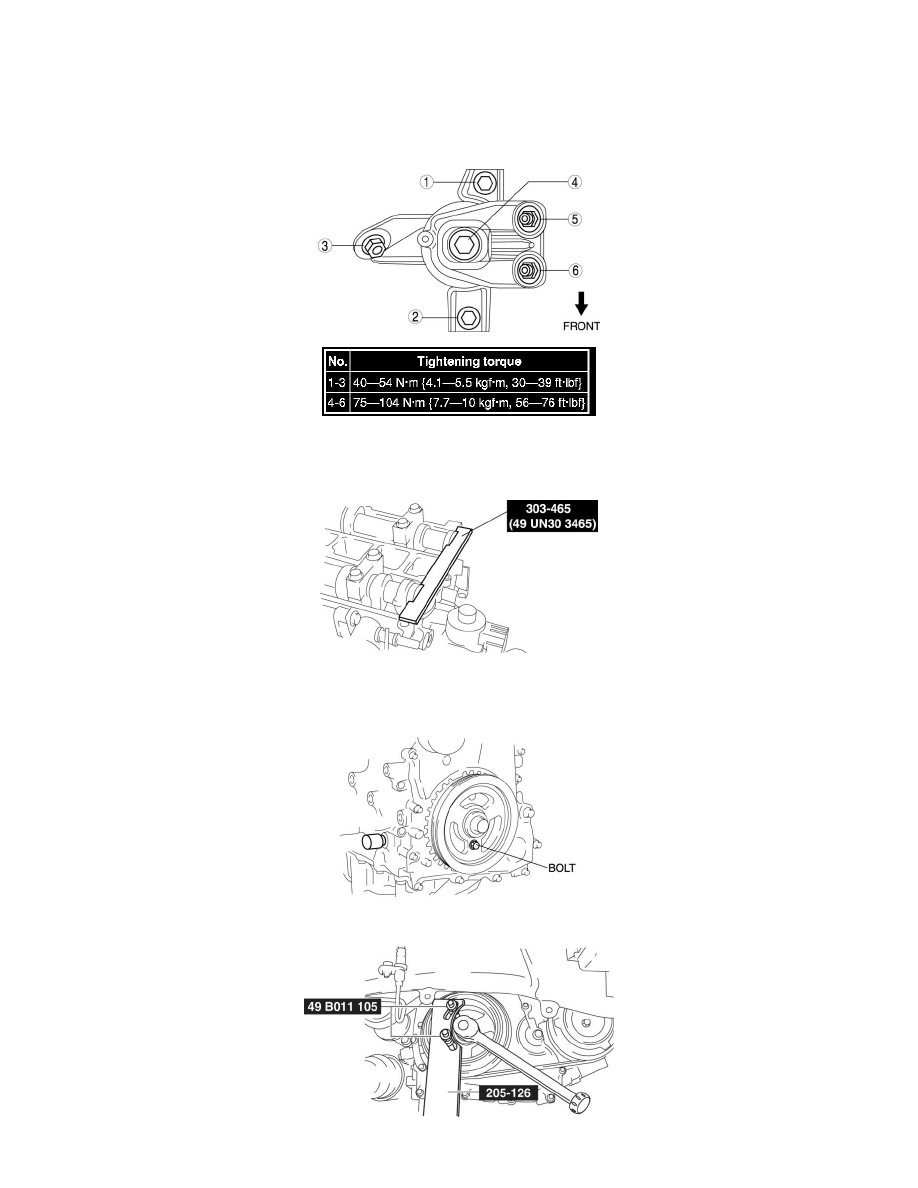

3. Tighten the No.3 engine mount bracket is attached and bolts, nuts in the order as shown.
Crankshaft Pulley Lock Bolt Installation Note
1. Install the SST to the camshaft as shown.
2. Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.)
3. To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0), fix the crankshaft pulley to the engine front cover.
4. Hold the crankshaft pulley using the SSTs.
5. Tighten the crankshaft pulley lock bolt in the order shown in the following two steps using the SST (49 D032 316).
