6 L4-2.5L (2010)
-
A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the
life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
7. Install in the reverse order of removal.

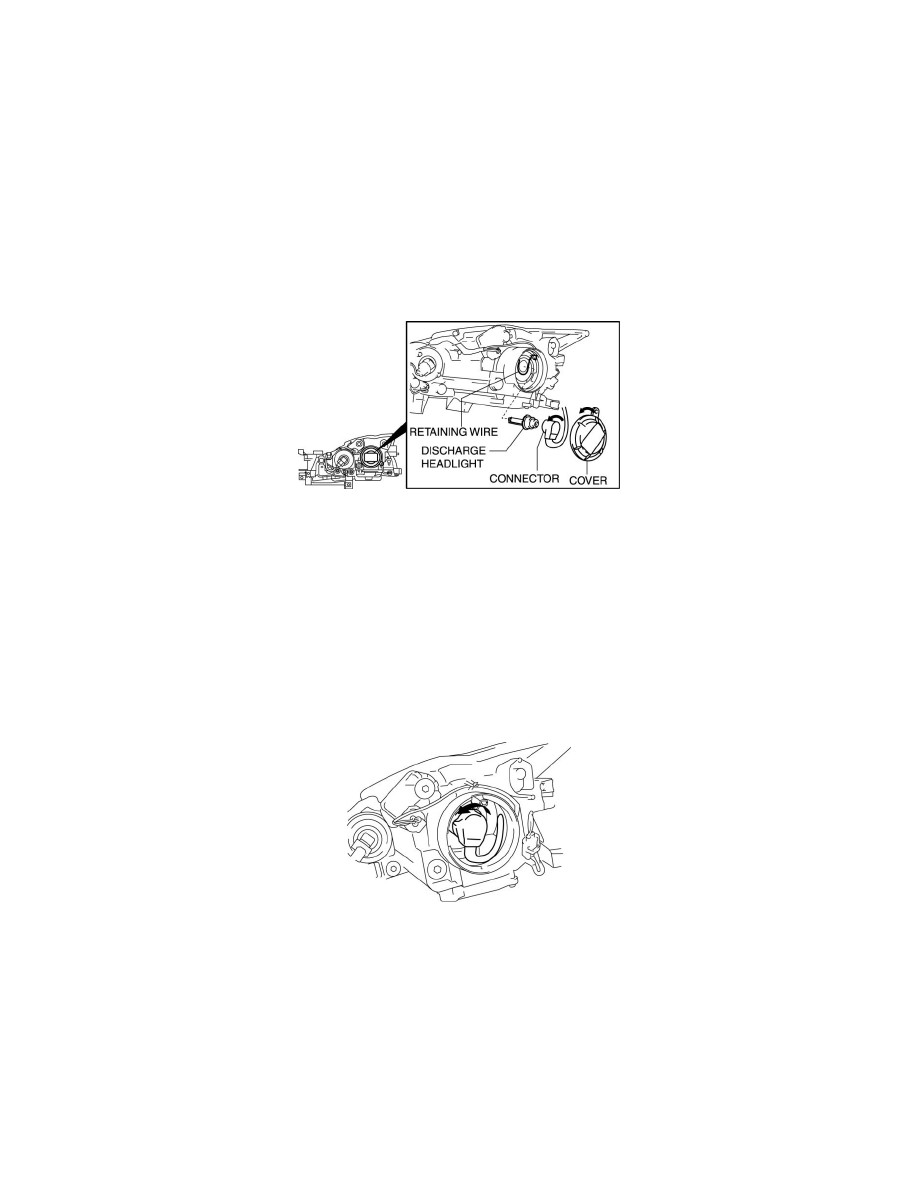

Discharge type
WARNING:
-
Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the
discharge headlight service warnings. See: Service Precautions
1. Disconnect the negative battery cable.
2. Remove the fasteners and slightly bend back the mudguard.
3. Remove the cover.
4. Remove the connector.
5. Remove the discharge headlight.
CAUTION:
-
The bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of
the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
6. Install in the reverse order of removal.
Discharge connector removal note
1. Rotate the connector in the direction of the arrow shown in the figure to remove it.
Discharge headlight removal note
1. Press sections A to release the bulb retaining wire and remove the discharge headlight.
