Page 3
background image

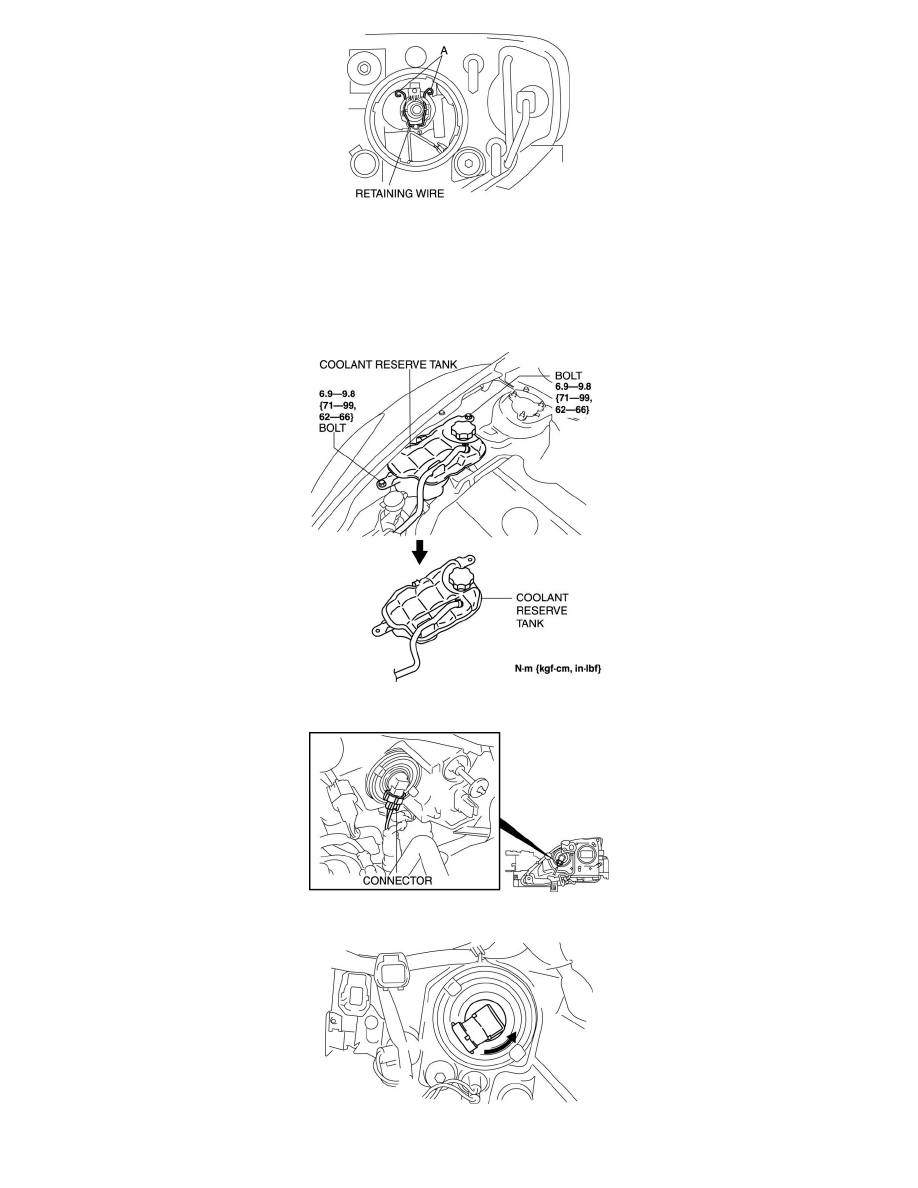

High-beam

1. Disconnect the negative battery cable.

2. Open the hood.

3. Remove the bolts shown in the figure and set the coolant reserve tank out of the way. (RH only)

4. Disconnect the connector.

5. Rotate the headlight bulb in the direction of the arrow shown in the figure.

6. Remove the headlight bulb.
