6 L4-2.5L (2010)
Drive Belt: Service and Repair
DRIVE BELT REMOVAL/INSTALLATION [L5]
1. Set the front mudguard (RH) out of the way. See: Body and Frame/Spoilers, Flaps, and Air Dams/Mud Flap/Service and Repair
2. Remove the splash shield (RH).

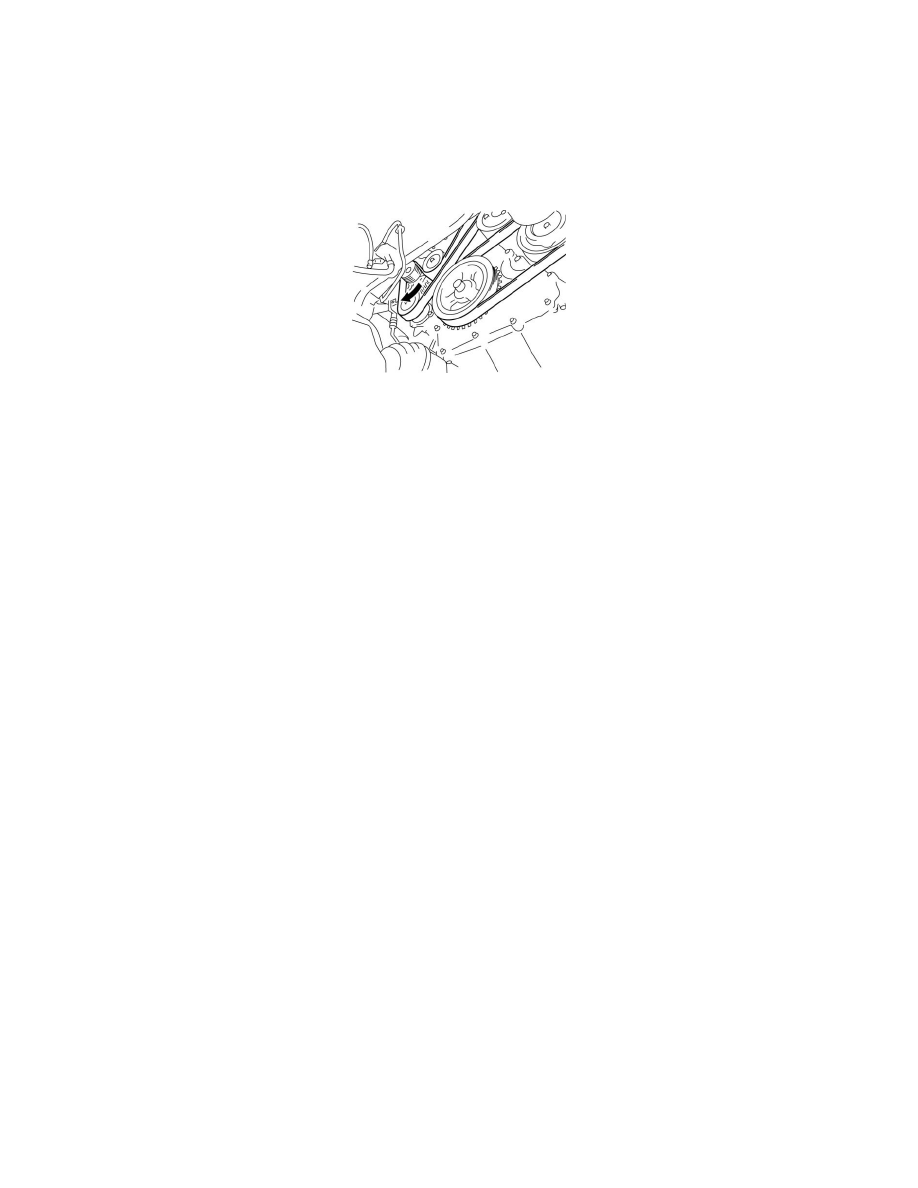

3. Rotate the drive belt auto tensioner in the direction shown in the figure and remove the drive belt.
4. Install the drive belt.
5. Install the splash shield (RH).
6. Install the front mudguard (RH). See: Body and Frame/Spoilers, Flaps, and Air Dams/Mud Flap/Service and Repair
