6 L4-2.5L (2010)
CAUTION:
-

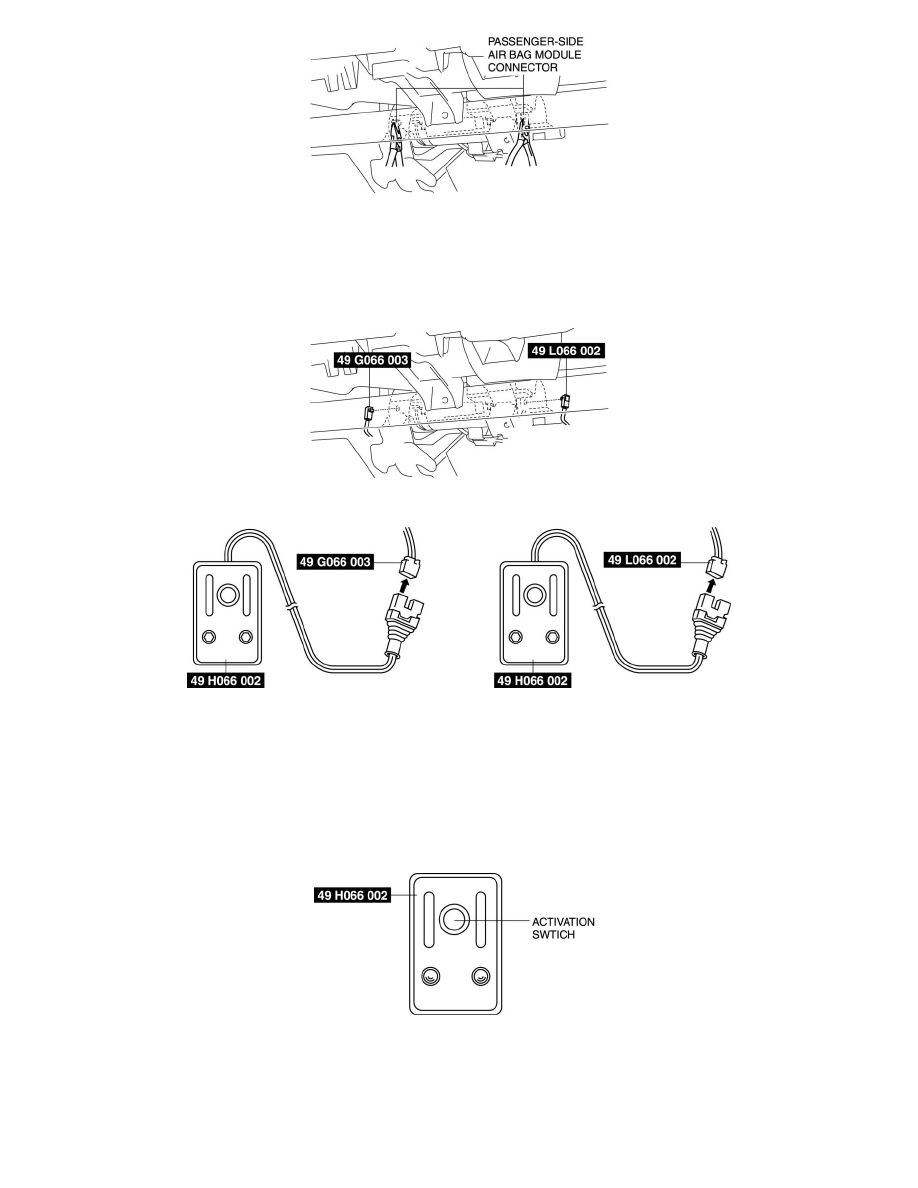

When disconnecting the passenger-side air bag module connector, pull it out straight, but do not rotate it. If it is rotated or pulled out at an angle
and the terminals are damaged, the SST (adapter wiring harness) may not be connected and the passenger-side air bag module may not operate
(deploy).
3. Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.
4. Connect the SST (Deployment tool) to the SST (Adapter harness).
5. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the
negative battery terminal.
6. Verify that the red lamp on the SST (Deployment tool) is illuminated.
7. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
8. Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow connector) of the SST (Adapter harness), and
after 3 s, press the activation switch on the other SST (Deployment tool) to operate (deploy) the air bag module (both inflators).
WARNING:
-
Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation
(explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module
operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again. If a total of two operation
(explosive) sounds cannot be verified even though Step 8 is performed again, leave the air bag module alone for 30 min or more before
approaching it again.
-
The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15
