6 L4-2.5L (2010)
Alternator: Removal and Replacement
GENERATOR REMOVAL/INSTALLATION [L5]
WARNING:
-
Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
-
When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury,
fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
CAUTION:
-
The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.
1. Disconnect the negative battery cable.
2. Remove the plug hole plate. See: Engine, Cooling and Exhaust/Engine/Service and Repair/Removal and Replacement/Plug Hole Plate
Removal/Installation
3. Remove the aerodynamic under cover No.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation
4. Remove the drive belt. See: Engine, Cooling and Exhaust/Engine/Drive Belts, Mounts, Brackets and Accessories/Drive Belt/Service and Repair

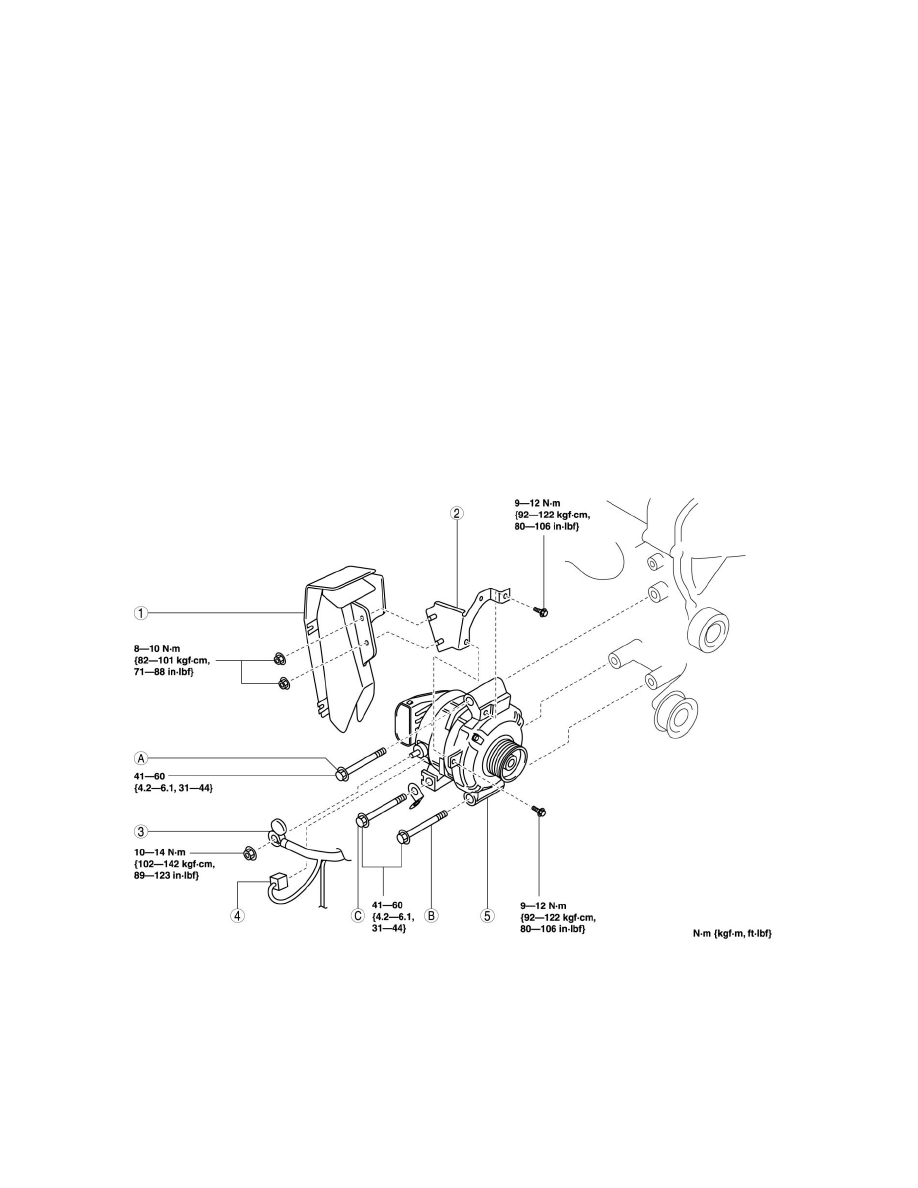

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
