6 L4-2.5L (2010)

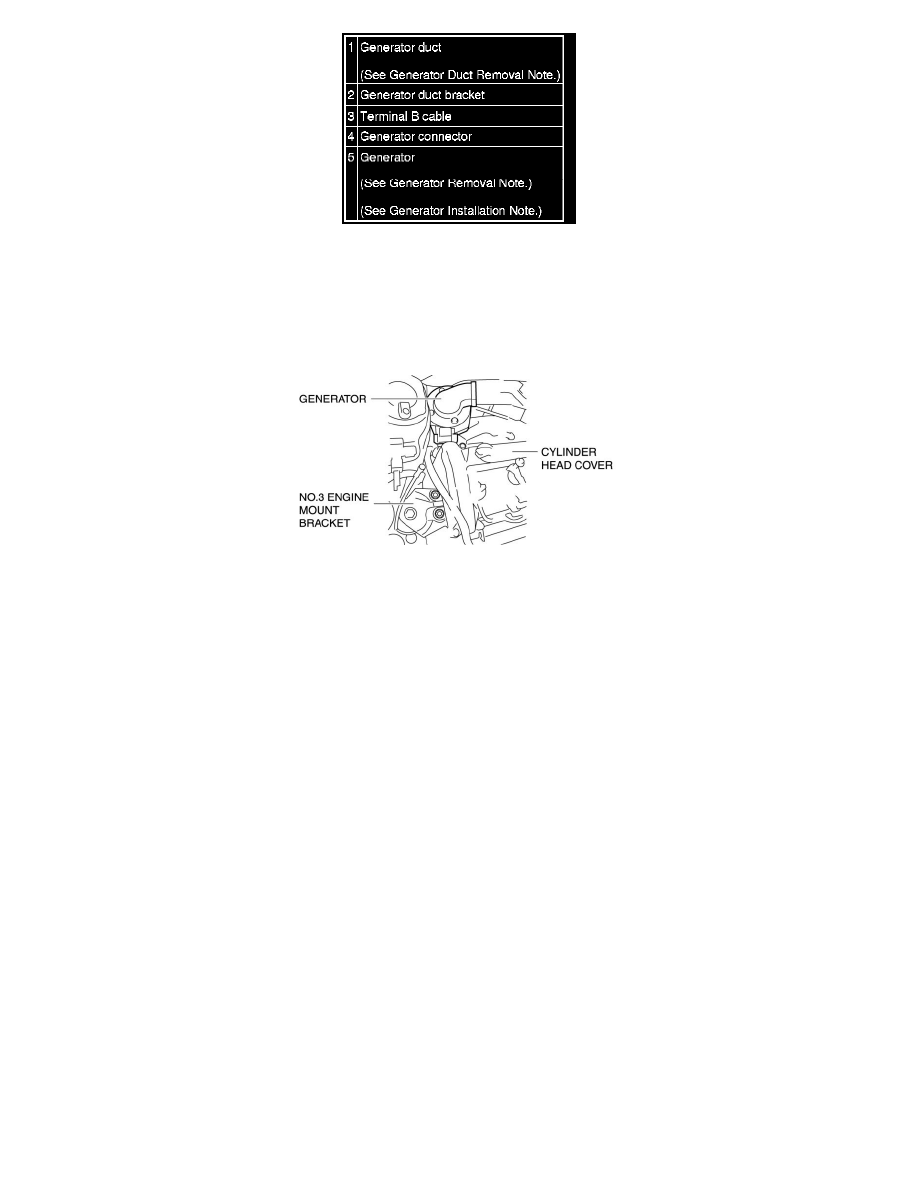

Generator Duct Removal Note
1. Remove the generator duct from above the engine compartment.
Generator Removal Note
1. Remove the generator from above the engine compartment.
Generator Installation Note
1. Tighten bolt A temporarily.
2. Tighten bolt B, C to the specified tightening torque.
3. Tighten bolt A to the specified tightening torque.
