6 L4-2.5L (2010)
-

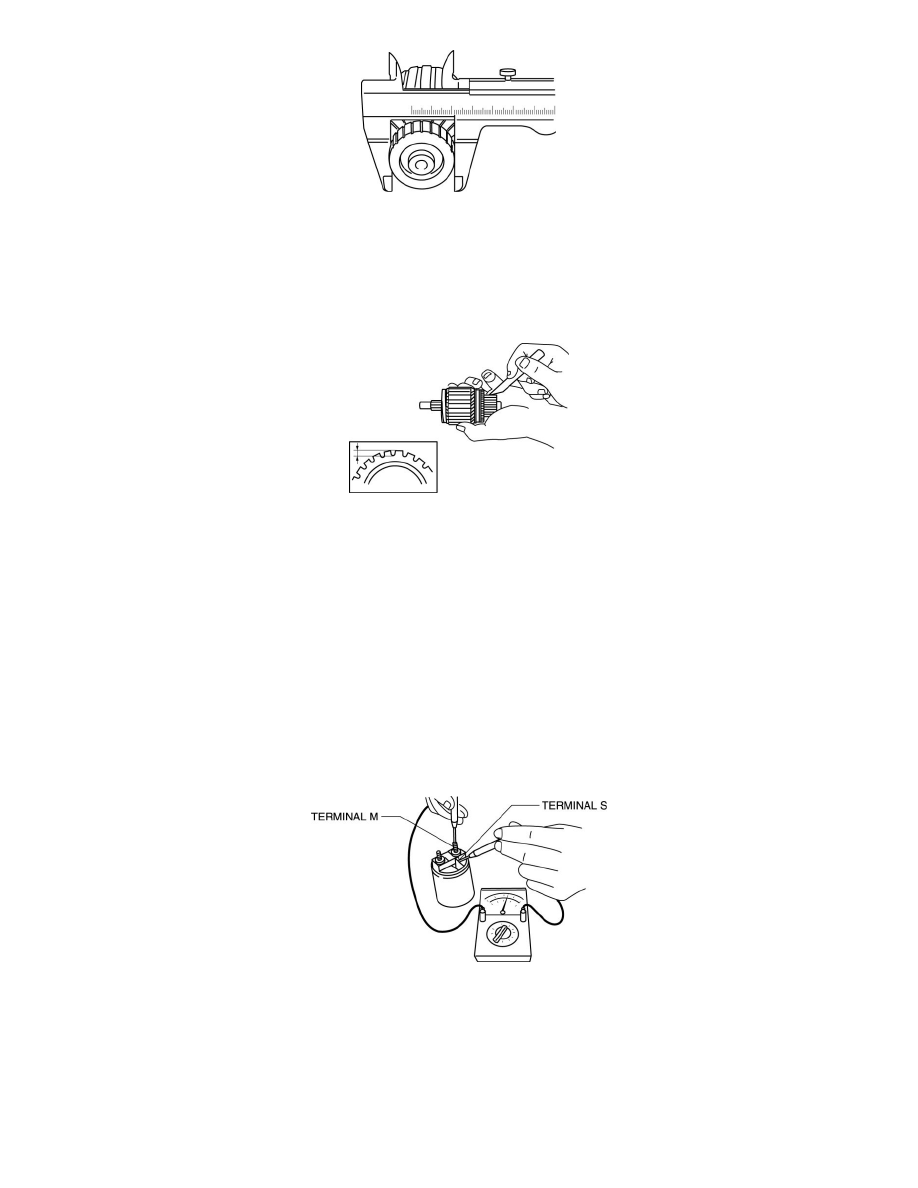

If not within the minimum specification, replace the armature.
Starter commutator diameter
-
Standard: 29.4 mm {1.16 in}
-
Minimum: 28.8 mm {1.13 in}
5. Measure the segment groove depth of the commutator.
-
If not within the minimum specification, undercut the grooves to the standard depth.
Segment groove depth of starter commutator
-
L321*:
-
Standard: 0.4-0.6 mm {0.016-0.023 in}
-
Minimum: 0.2 mm {0.008 in}
-
L556*:
-
Standard: 0.5 mm {0.02 in}
-
Minimum: 0.2 mm {0.008 in}
*
The first four digits of the part number indicated on the starter nameplate
Magnetic switch
1. Inspect for continuity between terminals S and M using a tester.
-
If there is no continuity, replace the magnetic switch.
2. Inspect for continuity between terminal S and the body using a tester.
