6 L4-2.5L (2010)
-
If there is no continuity, replace the magnetic switch.

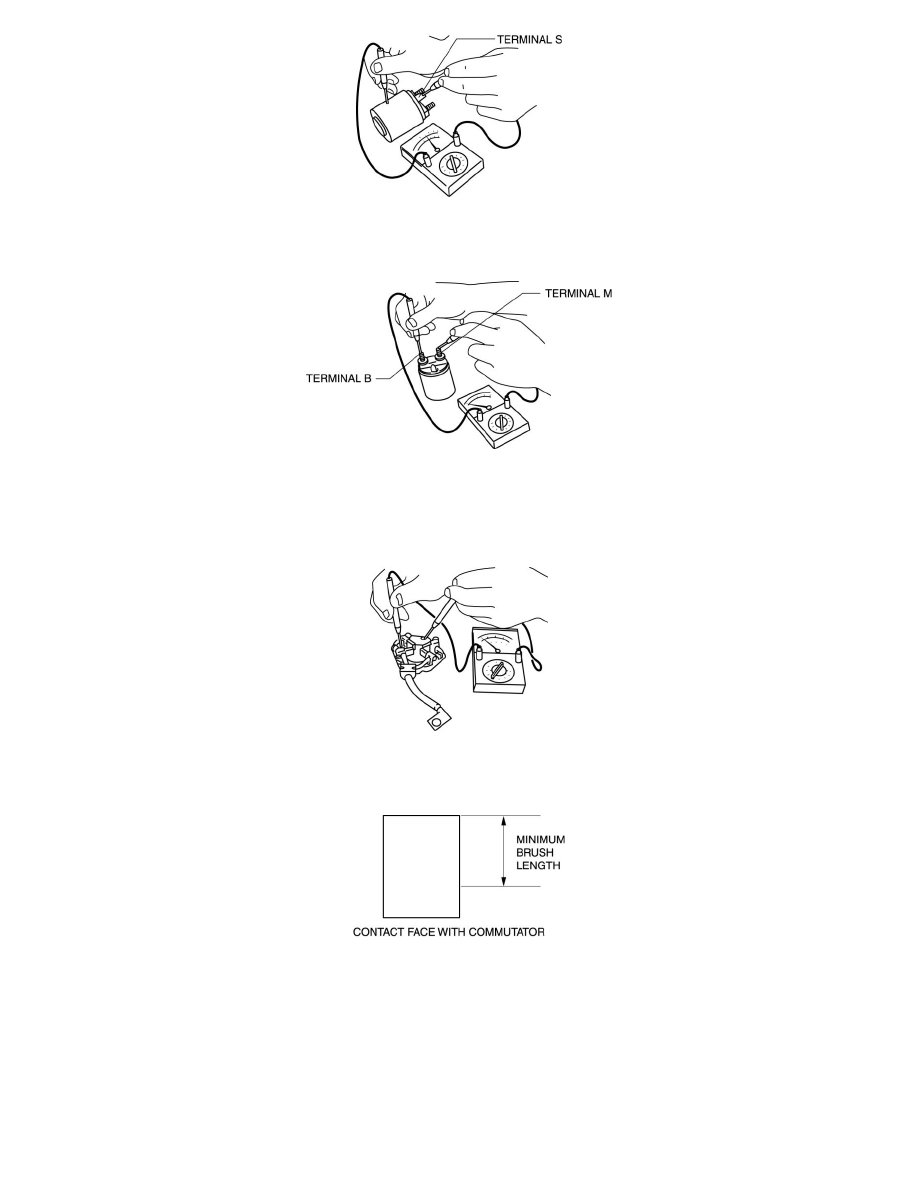

3. Verify that there is no continuity between terminals M and B using a tester.
-
If there is continuity, replace the magnetic switch.
Brush and brush holder
1. Verify that there is no continuity between each insulated brush and plate using a tester.
-
If there is continuity, replace the brush holder.
2. Measure the brush length.
-
If any brush is worn almost to or beyond the minimum specification, replace all of the brushes.
Starter brush length
-
L321*:
-
Standard: 12.3 mm {0.484 in}
-
Minimum: 7.0 mm {0.28 in}
-
L556*:
-
Standard: 12.3 mm {0.484 in}
-
Minimum: 5.5 mm {0.22 in}
*
