6 L4-2.5L (2010)
Seals and Gaskets: Service and Repair
Oil Seal (Oil Pump) Replacement - AW6A-EL
OIL SEAL (OIL PUMP) REPLACEMENT [AW6A-EL]
1. Remove the transaxle. See: Service and Repair/Removal and Replacement/Automatic Transaxle Removal/Installation - AW6A-EL
CAUTION:
-
The oil seal is easily damaged by the sharp edges of the torque converter splines. Do not let the splines contact the oil seal.
-
Do not drop the torque converter.
-
Do not pinch fingers.
2. Remove the torque converter. See: Torque Converter/Service and Repair
CAUTION:
-
Do not to damage the bushing on the oil pump body.

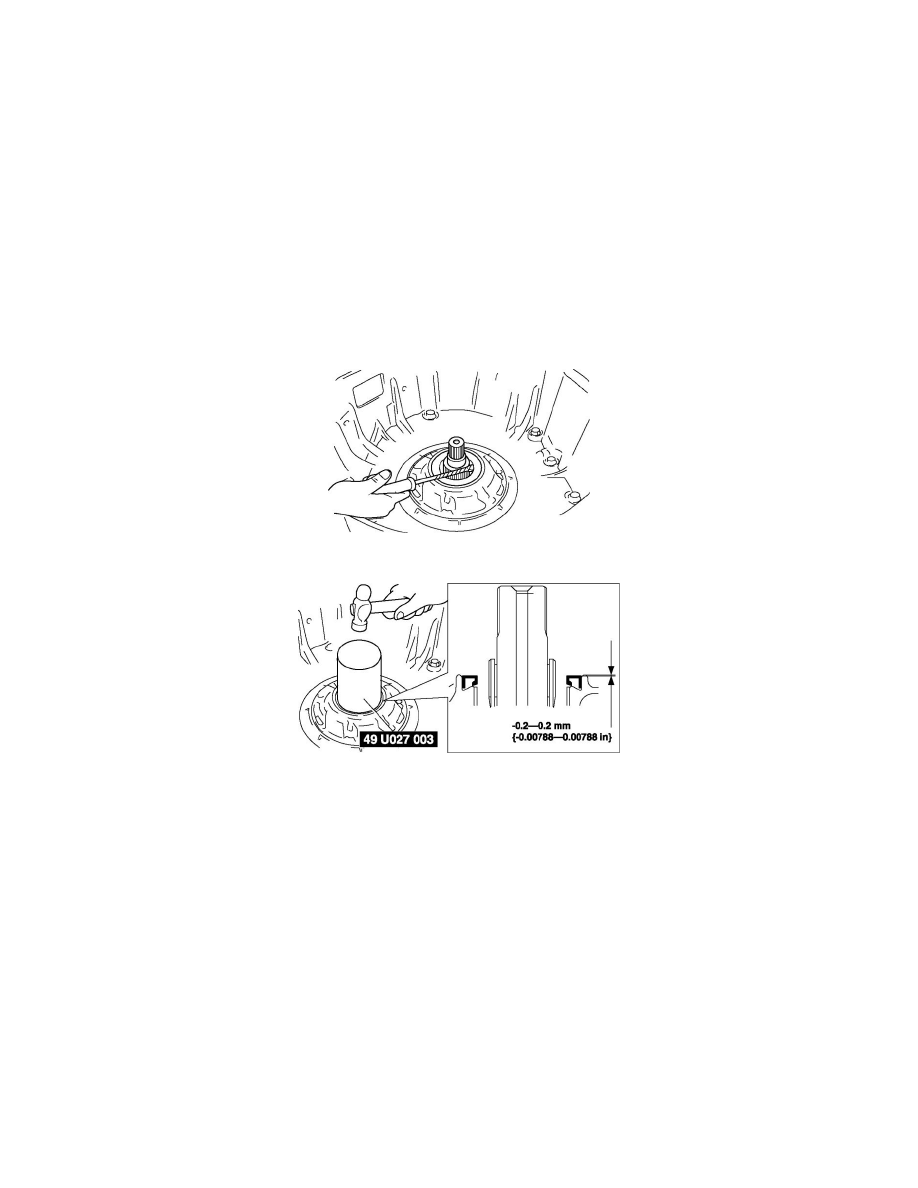

3. Using a tape-wrapped flathead screwdriver, remove the oil seal from the oil pump body.
4. Using the SST and a hammer, install the oil seal to the oil pump body.
5. Coat the lip of the oil seal with grease.
6. Install the torque converter. See: Torque Converter/Service and Repair
7. Install the transaxle. See: Service and Repair/Removal and Replacement/Automatic Transaxle Removal/Installation - AW6A-EL
8. Perform the "Mechanical System Test". See: Transmission Control Systems/Testing and Inspection/Initial Inspection and Diagnostic
Overview/Mechanical System Test - AW6A-EL
