6 L4-2.5L (2010)
Clutch Pedal Assembly: Service and Repair
CLUTCH PEDAL REMOVAL/INSTALLATION
1. Remove the battery and battery tray.
2. Remove the cowl panel. See: Body and Frame/Cowl/Cowl Moulding / Trim/Service and Repair/Cowl Panel Removal/Installation

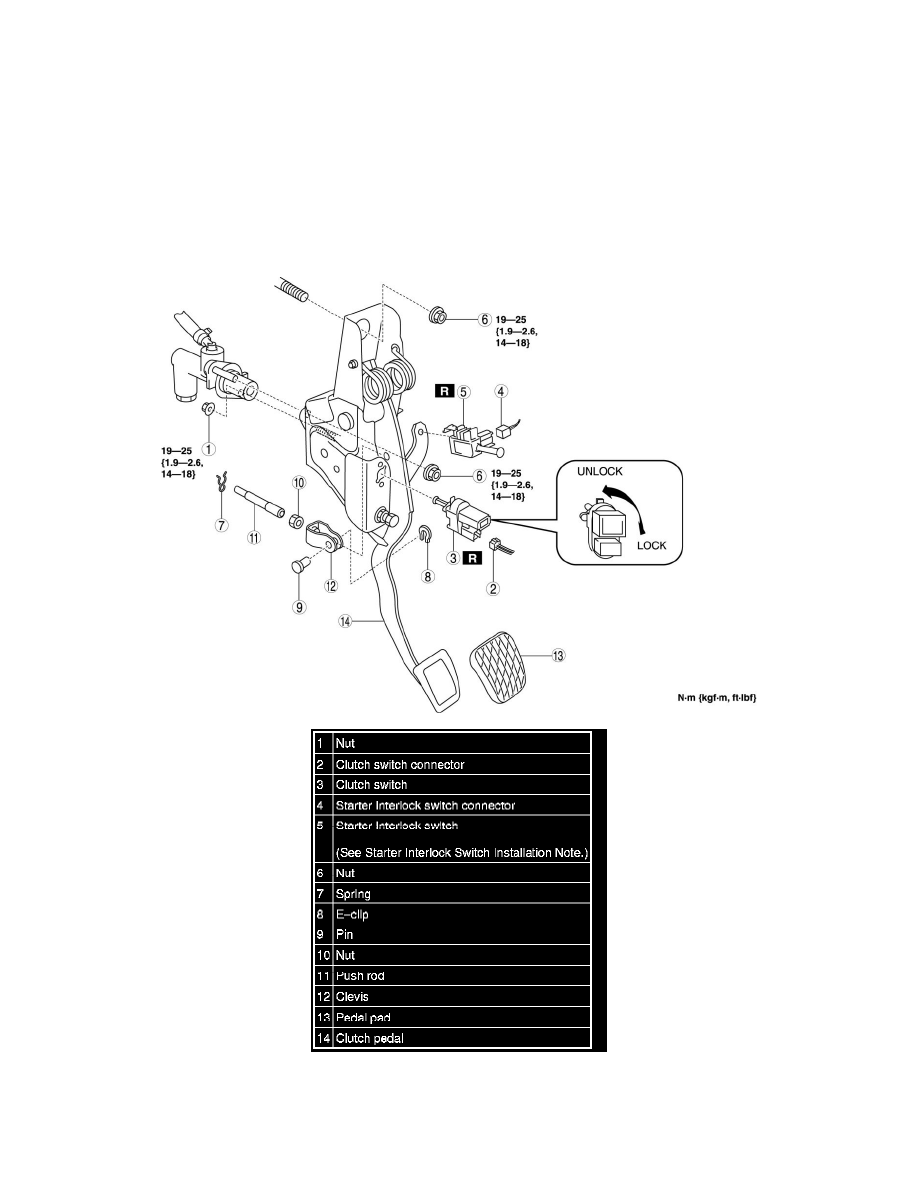

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. After installation, inspect the clutch pedal. See: Adjustments
Starter Interlock Switch Installation Note
CAUTION:
-
The starter interlock switch may not operate normally if the rod is pushed in. Do not push in the rod when installing the starter interlock switch.
