6 L4-2.5L (2010)

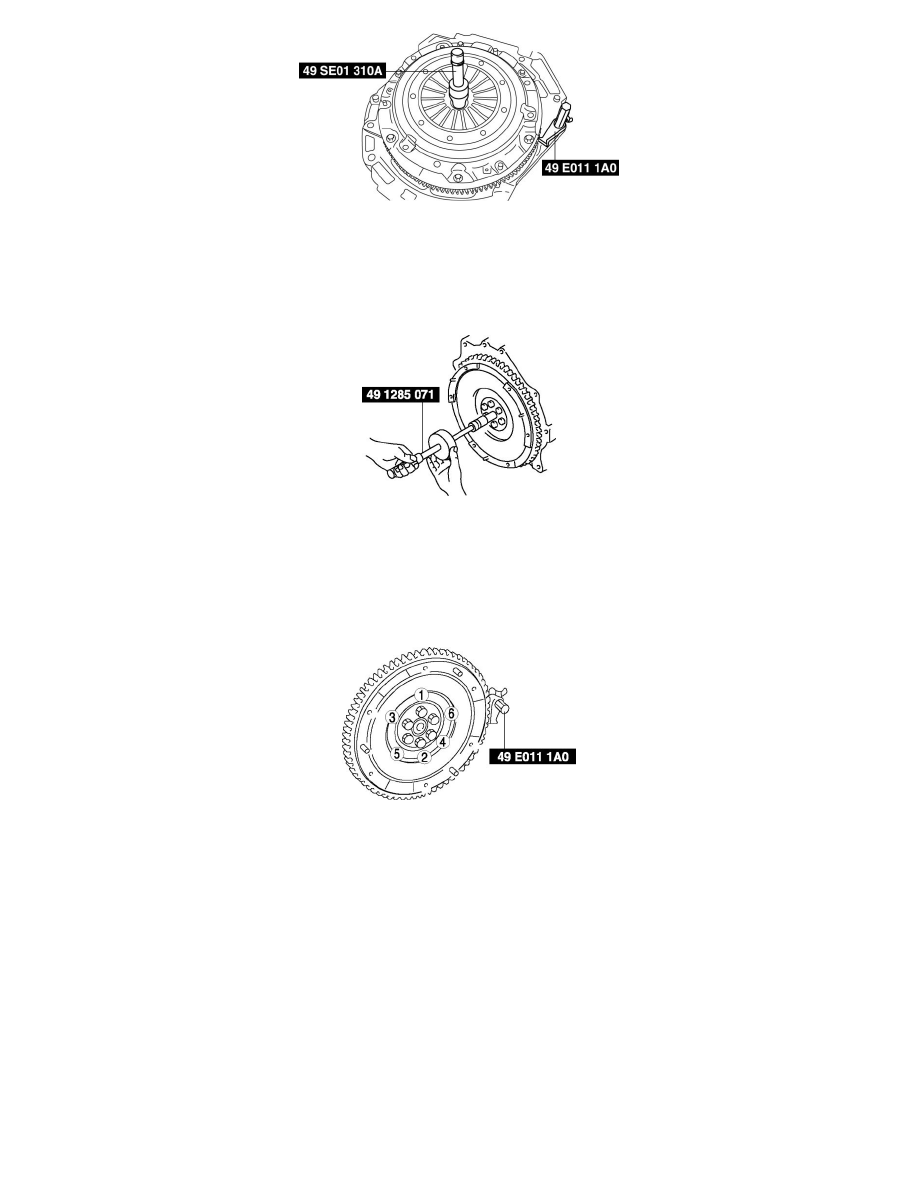

Pilot Bearing Removal Note
NOTE:
-
The pilot bearing does not need to be removed unless you are replacing it.
1. Use the SST to remove the pilot bearing.
Flywheel Removal Note
1. Hold the flywheel using the SST.
2. Remove the bolts evenly and gradually in a crisscross pattern.
3. Remove the flywheel.
Flywheel Installation Note
1. Clean the crankshaft thread holes.
2. Install the flywheel to the crankshaft.
3. Hand-tighten the new flywheel lock bolts.
4. Install the SST to the flywheel.
5. Gradually tighten the flywheel lock bolts in a crisscross pattern.
