Flex Plate: Specifications

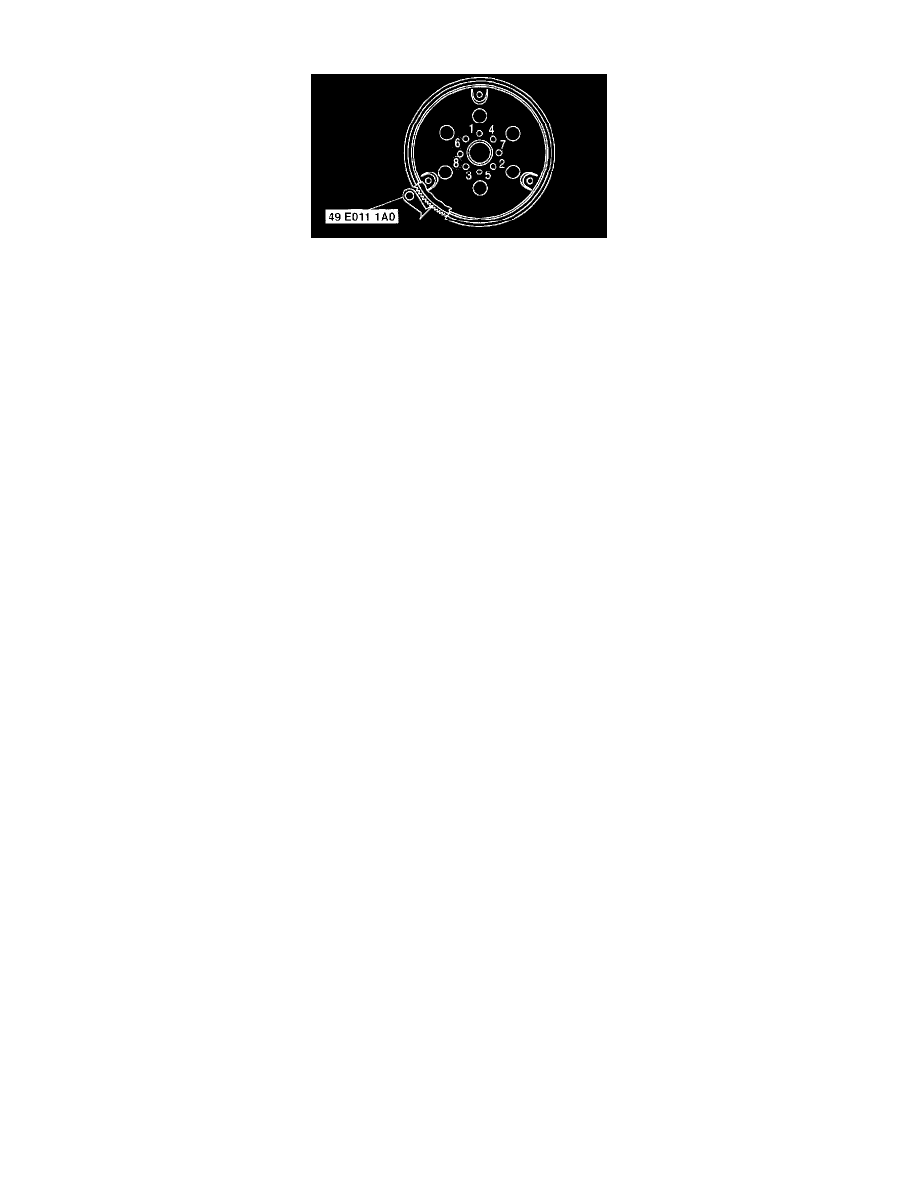

Tighten the drive plate mounting bolts in two or three steps in the order shown.

Tightening torque .......................................................................................................................................  73 - 87 Nm (7.4 - 8.9 kgf-cm, 54 - 64 ft. lbs.)

Flywheel run out limit ............................................................................................................................................................................  0.5 mm (0.002 inch)
