6 V6-3.7L (2009)
Fluid - M/T: Testing and Inspection
TRANSAXLE OIL INSPECTION [G66M-R]
1. Park the vehicle on level ground.
2. Remove the aerodynamic under cover No.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation
3. Remove the oil level plug and washer.

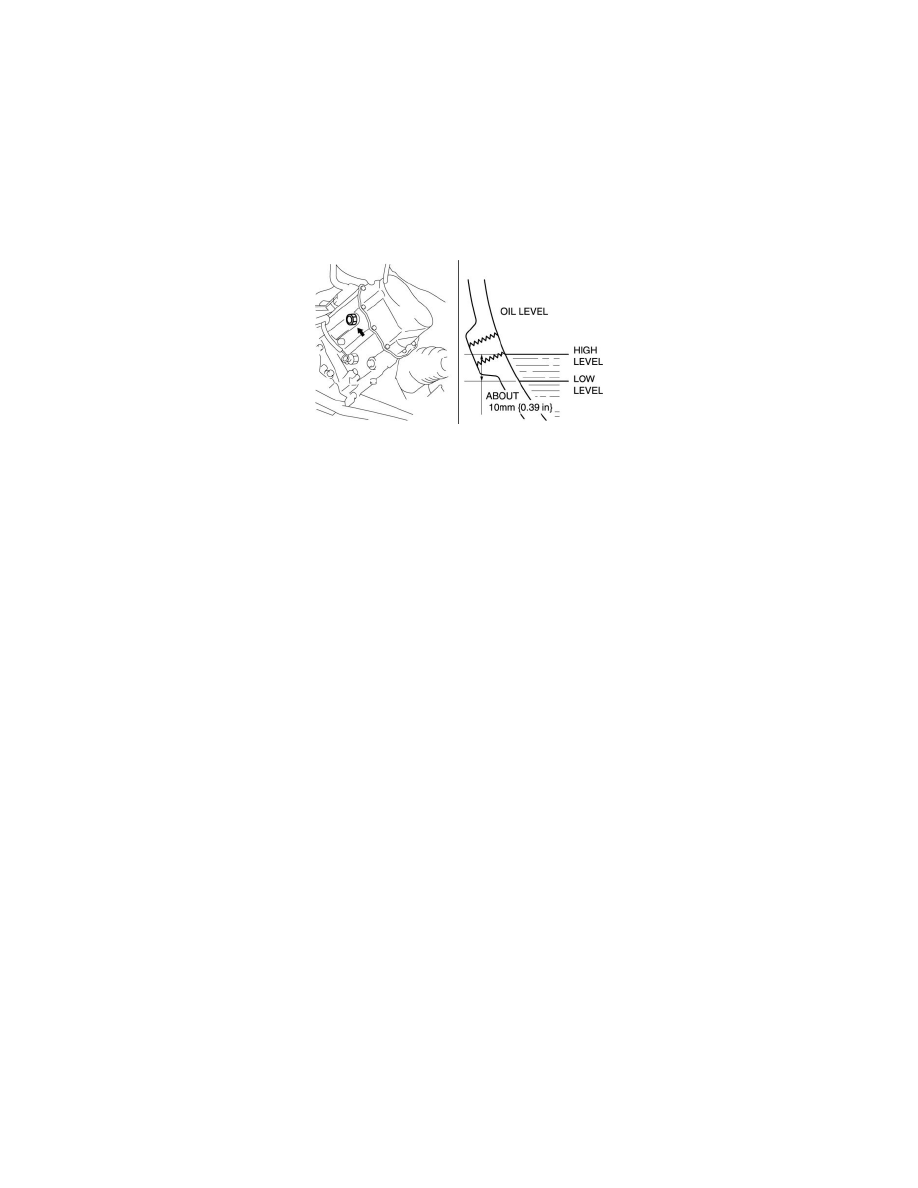

4. Verify that the oil is near the brim of the plug port.
-
If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.
Manual transaxle oil Grade
-
API Service GL-4 or GL-5
Manual transaxle oil Viscosity
-
All-season: SAE 75W-90
-
Above 10 °C {50 °F}: SAE 80W-90
5. Install a new washer and the oil level plug.
Tightening torque
-
39-59 Nm {4.0-6.0 kgf-m, 29-43 ft-lbf}
6. Install the aerodynamic under cover No.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation
