B2300 L4-2.3L (2008)
Intake Manifold: Locations
INTAKE AIR COMPONENT LOCATIONS

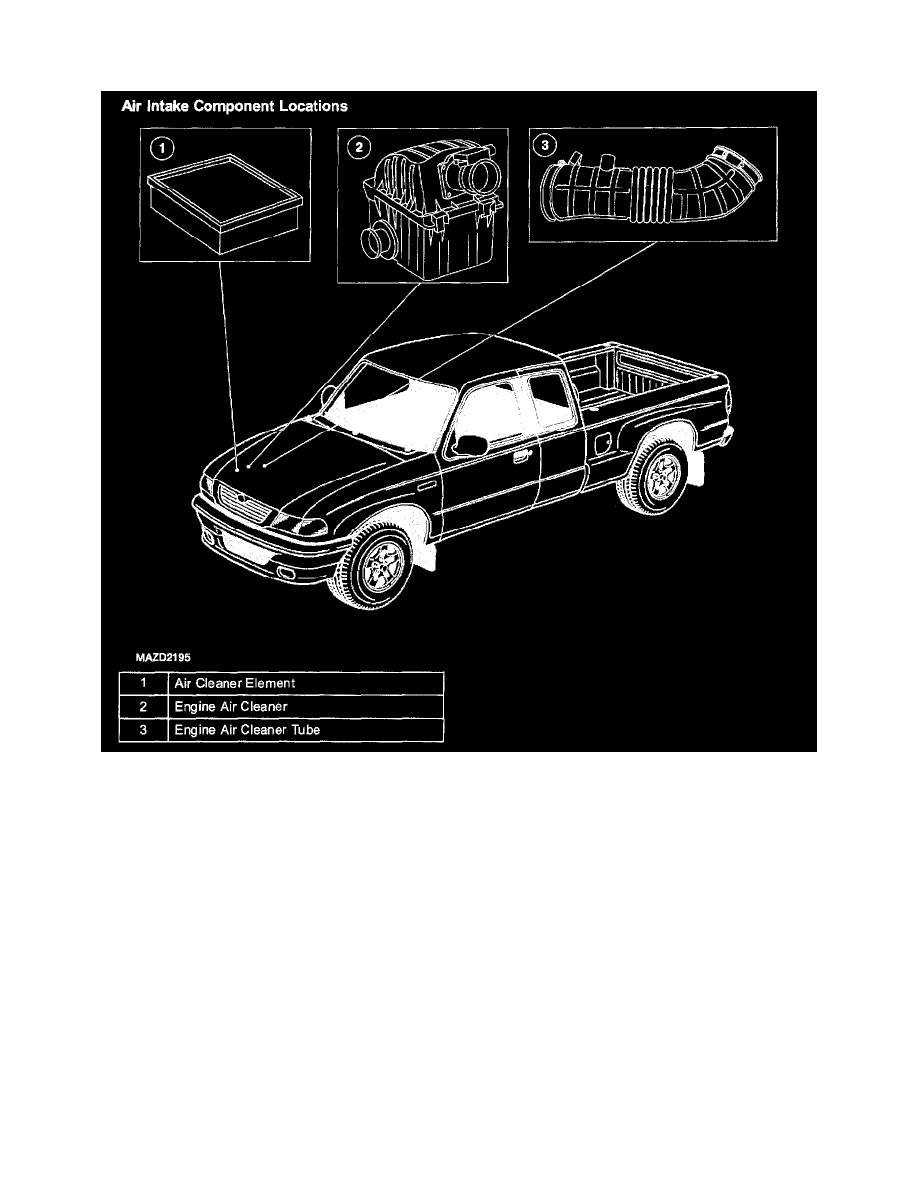

Air Intake Component Locations
The air induction system supplies filtered air to the engine to mix with the fuel for combustion purposes. The air induction system consists of:
-
the engine air cleaner.
-
the air cleaner element
-
the air cleaner outlet tube
-
the mass air flow (MAF) sensor
-
the throttle body
-
the intake plenum
The engine air cleaner:
-
is chemically treated, pleated paper.
-
filters the engine intake air.
