Relay Box: Diagrams
- Make
- Mazda
- Model
- B2300
- Engine
- L4-2.3L
- Year
- 2008
- Section
- Fuses and Circuit Breakers › Relay Box › Diagrams
MaintenanceDiagrams · page 1 of 6
Relay Box: Diagrams

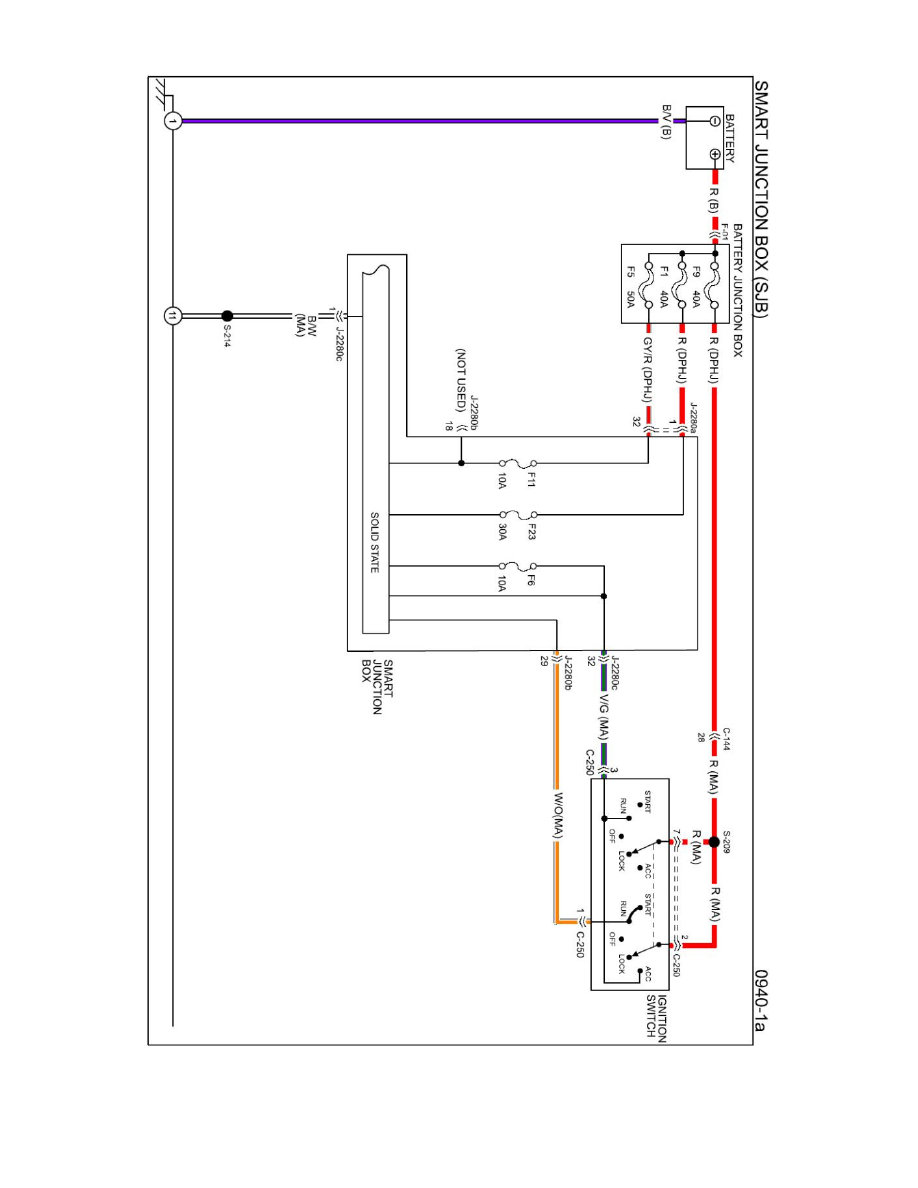

Diagram 0940-1a
