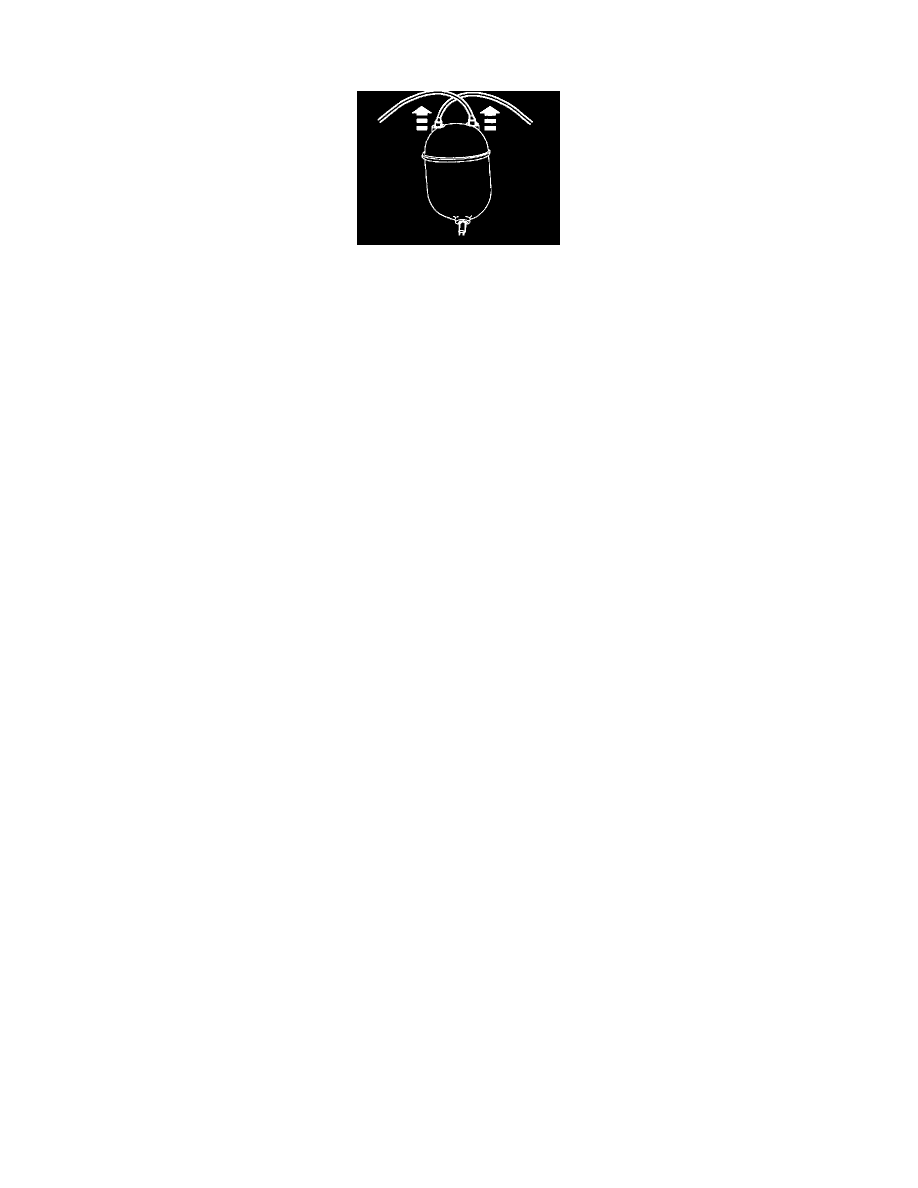

Vacuum Reservoir HVAC: Service and Repair

1. Remove the screws and the A/C vacuum reservoir tank and bracket.

2. Disconnect the vacuum supply and outlet hoses.
3. Disconnect the vacuum hose from the back of the tank if equipped with 4-wheel drive.
4. Install in reverse order of removal.

Heating and Air Conditioning > Vacuum Reservoir HVAC > Component Information > Service and Repair
