B4000 4WD V6-4.0L OHV (1995)

Page 1
background image

Flywheel: Specifications

B2300, B3000, and B4000

Runout: ................................................................................................................................................................................................. 0.13 mm (0.005 in)
Flywheel Bolt Torque ............................................................................................................................................................................. 80 Nm (54 ft lbs.)

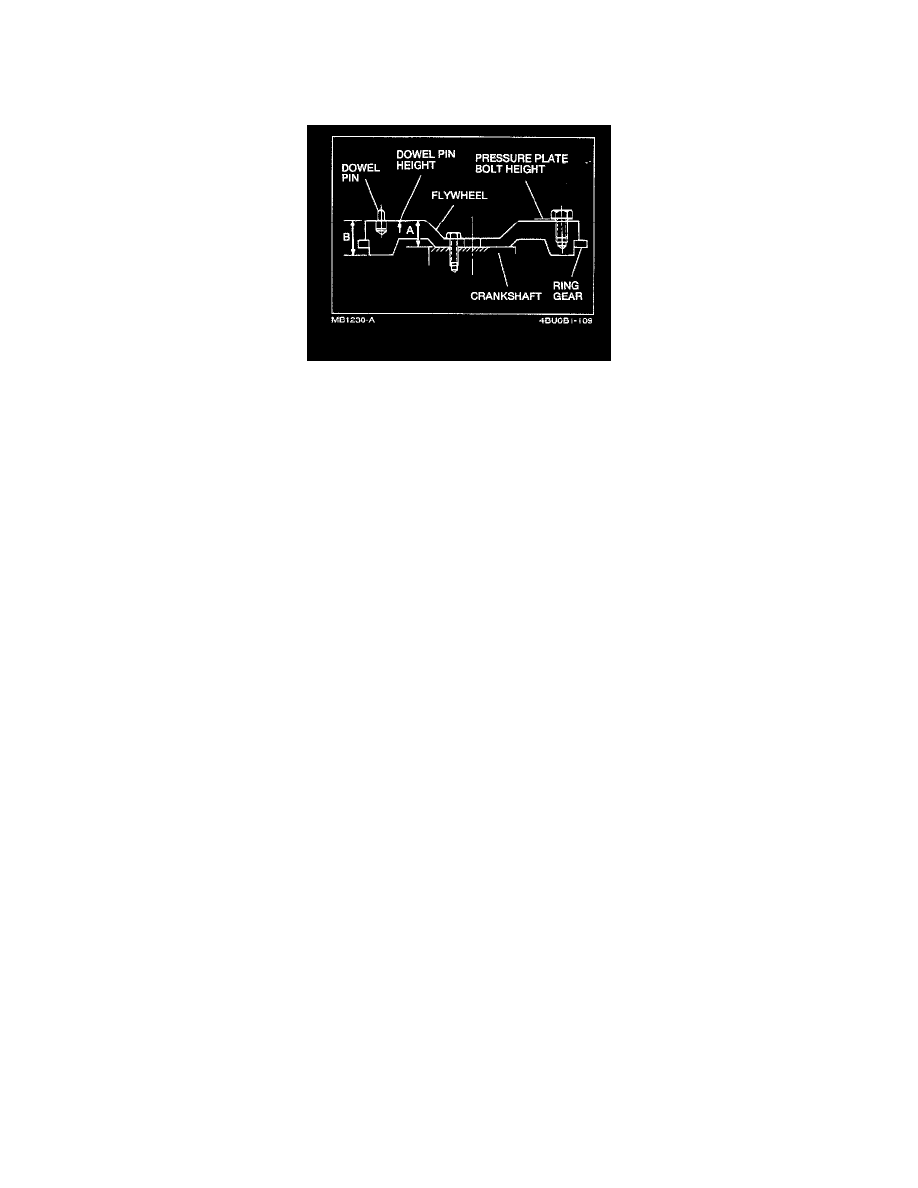

2.3L and 4.0L

Dimension A ........................................................................................................................................................................................  25.95 mm (1.02 in)
Dimension B ........................................................................................................................................................................................  28.45 mm (1.12 in)

3.0L

Dimension A ........................................................................................................................................................................................  28.18 mm (1.10 in)
Dimension B ........................................................................................................................................................................................  28.85 mm (1.14 in)
