CX-7 AWD L4-2.3L Turbo (2008)
Alignment: Specifications

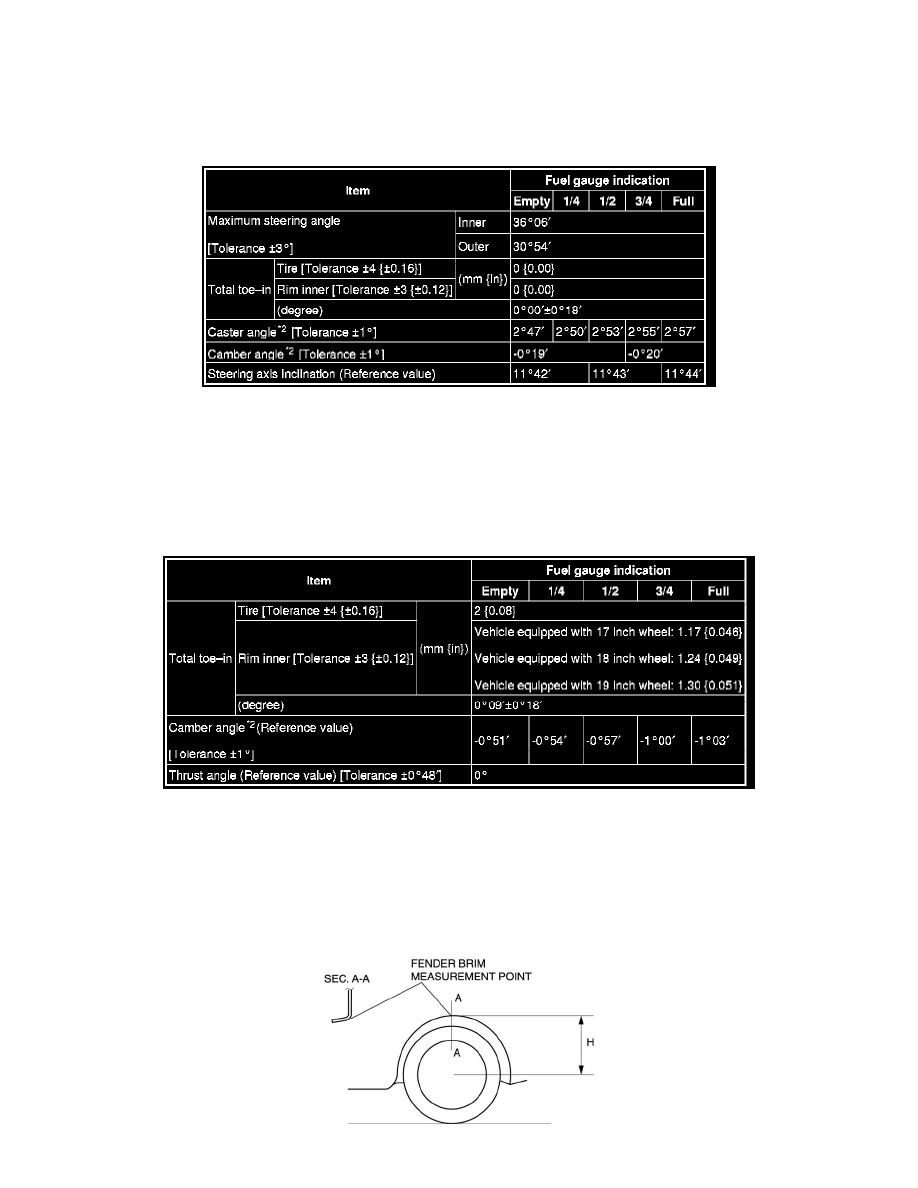

Front Wheel Alignment
FRONT WHEEL ALIGNMENT
Front wheel alignment (Unloaded)*1
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
REAR WHEEL ALIGNMENT
Rear wheel alignment (Unloaded)*1
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
Ride Height
Measure height H from the center of the wheel to the fender brim.
