CX-7 FWD L4-2.3L Turbo (2010)

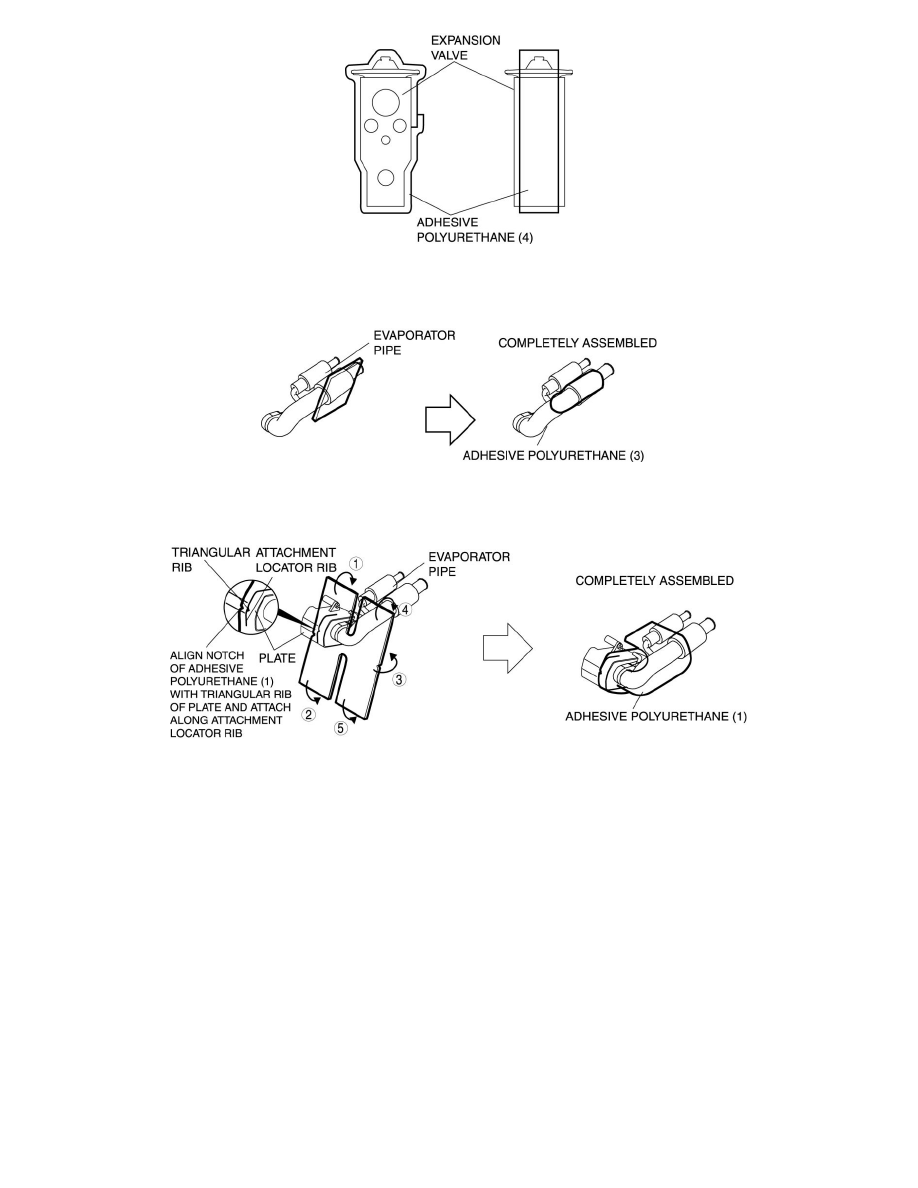

Adhesive polyurethane (3) Assembly Note
1. Attach the adhesive polyurethane (3) so that it adheres around the low-pressure side of the evaporator pipe.
Adhesive polyurethane (1) Assembly Note
1. Attach the adhesive polyurethane (1) as shown in the figure.
