Drive Belt: Testing and Inspection

DRIVE BELT INSPECTION [L3 WITH TC]

NOTE:

-

Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.

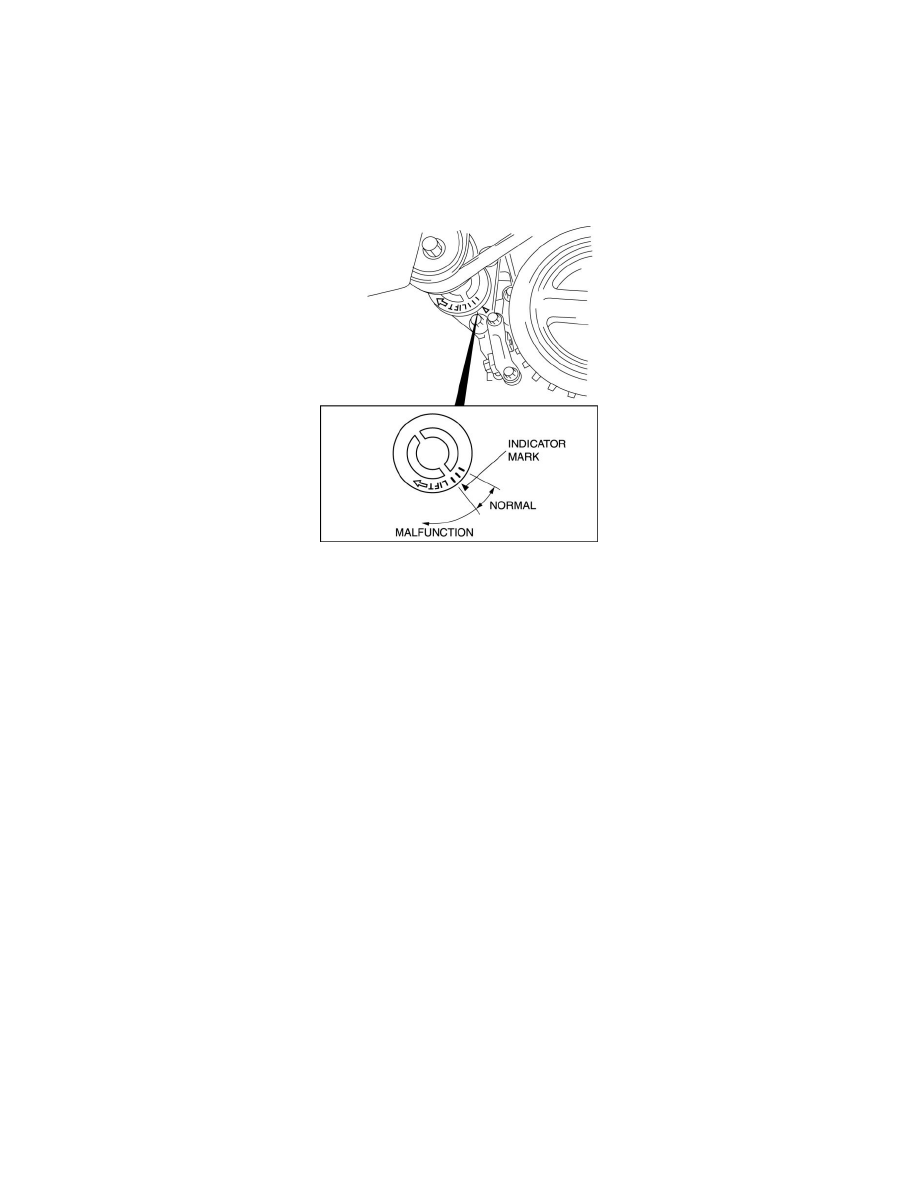

1. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

-

If it exceeds the limit, replace the drive belt.  See: Service and Repair
